IC-INT-VPX3k

3U VPX Intel® Xeon® W Single Board Computer

  • 3U VPX
  • Intel ® Xeon ® W (Tiger Lake-H)
  • DDR4 with ECC up to 64GB
  • 1 PCIe x4 (Data Plane)
  • 1 PCIe x16 (Expansion Plane)

IC-INT-VPX3k - 3U VPX Intel Tiger Lake H SBC

The  IC-INT-VPX3k  is  a  3U  VPX  Single  Board  Computer  built around the Intel® Xeon® W (code name Tiger Lake-H) processor. This powerful 6 or 8-core processing module is dedicated to mil-aero edge-computing applications, where performance, efficiency and power management are required.

DATASHEET Contact us

Processing Unit

1 * Intel® Xeon® (Tiger Lake-H)
W-11555MRE (6 Cores, 2.60 GHz) or
W-11865MRE (8 Cores, 2.60 GHz)
2 * banks of DDR4 with ECC (up to 16/32 GB/bank)
Boot flash memory
External independent RTC with supercap
backup
Thermal/voltage monitoring sensors
1 * M. 2242 slot for SSD

Communication subsystem

16 * PCIe lanes (configurable as x16, x8/x8 or x8/x4/x4) (P2)
2 * 1000BASE-T Ethernet ports
1 * RS232 console port (front or rear)
2 * rear USB 2.0 ports
4* rear SATA interfaces or 1 PCIe Gen3 x4 (P1)46 * GPIOs
1 * RS232 serial port (rear)

Front connectors (air-cooled versions)

mini USB console port
USB-C connector (option)
mini Display port



P1 connector

1 * PCIe x4 port
4 * SATA ports
1 * Digital video
2 * USB2.0 ports
2 * 1000BASE-T Ethernet ports
1 * Console port

P2 connector

16 * PCIe lanes
1 * RS232/RS422/RS485 serial port
4 * GPIOs

Miscellaneous
Status LEDs
µ-controller for System Management (VITA 46.11)

Accessories
3U Rear Transition Module

The IC-INT-VPX3k is a 3U VPX board compliant with VITA 46.0 standard.

IC-INT-VPX3k - 3U VPX Intel Tiger Lake H SBC diagram
✖ IC-INT-VPX3k - 3U VPX Intel Tiger Lake H SBC diagram
Criterion Standard Extended Rugged Conduction-cooled 71°C Conduction-cooled 85°C
Coating Optional Yes Yes Yes Yes
Operat. Temp. 0 to 55°C -20 to 65°C -40°C to 71°C or 85°C (*) -40°C to 71°C
at the thermal interface (*)		 -40°C to 85°C
at the thermal interface (*)
Rec. airflow 1 .. 2 m/s 2 .. 3 m/s 2 .. 5 m/s - -
Oper. HR% no cond. 5 to 90% 5 to 95% 5 to 95% 5 to 95% 5 to 95%
Storage Temp. -45°C to 85°C -45°C to 85°C -45°C to 100°C -45°C to 100°C -45°C to 100°C
Sinusoidal Vibr 2G [20..2000]Hz 2G [20..2000]Hz 5G [20..2000]Hz 5G [20..2000]Hz 5G [20..2000]Hz
Random Vibr 0.002g2 /Hz
[10..2000]Hz		 0.002g2 /Hz
[10..2000]Hz		 0.05g2 /Hz
[10..2000]Hz		 0.1g2 /Hz
[10..2000]Hz		 0.1g2 /Hz
[10..2000]Hz
Shock 1/2 Sin. 11ms 20G 20G 40G 40G 40G
(*) Temperature grades are subject to availability according to IC products. Please consult us.

Related products

Array
(
    [0] => Array
        (
            [id] => 347
            [prodlink] =>
            [product] => ComEth4082e
            [title] =>
            [type] => 1
            [prodformfactor] => 7
            [ffstandard1] =>
            [wide] =>
            [processor] =>
            [channelsio] =>
            [samplingrate] =>
            [gpu] =>
            [others] =>
            [sport] =>
            [eport] =>
            [ports] =>
            [portsoption] =>
            [type_management] => 2
            [type_ethernet] => 1,2,3,5
            [type_backplane] => 0
            [type_pci] => 0
            [type_fpga_family] => 0
            [type_processor] => 0
            [management] =>
            [pci_express] => 2
            [img] => Cometh4082e_2ac-cc.png
            [img_alt] => ComEth4082e - VITA 66.5 3U VPX Giga Ethernet Switch
            [img_360] =>
            [coldesc] =>
            [cdp] => 0
            [consult] => 0
            [und_dev] => 0
            [discontinued] => 0
            [featured] => 0
            [gotourl] =>
            [pdf_datasheet] => Cometh4082e_v08.pdf
            [data_sheet_description] =>
            [main_points] =>
            [diagram] => ComEth4082e-diagram.png
            [diagram_alt] => ComEth4082e - VITA 66.5 3U VPX Ethernet Switch diagram
            [put_forward] => 1
            [status] => 0
            [btn_title] =>
            [trashed] => 0
            [related_prods] => 174,184,332
            [form_factor] => 3U VPX
            [type_name] => Ethernet Switches
        )

    [1] => Array
        (
            [id] => 375
            [prodlink] =>
            [product] => ComEth4420e
            [title] =>
            [type] => 1
            [prodformfactor] => 7,20
            [ffstandard1] =>
            [wide] =>
            [processor] =>
            [channelsio] =>
            [samplingrate] =>
            [gpu] =>
            [others] =>
            [sport] =>
            [eport] =>
            [ports] =>
            [portsoption] =>
            [type_management] => 2
            [type_ethernet] => 1,2,3,5
            [type_backplane] => 0
            [type_pci] => 0
            [type_fpga_family] => 0
            [type_processor] => 0
            [management] =>
            [pci_express] => 1
            [img] => ComEth4420e-aft_aoc-awards22.png
            [img_alt] => ComEth4420e - 3U VPX 40G Ethernet switch
            [img_360] =>
            [coldesc] =>
            [cdp] => 0
            [consult] => 0
            [und_dev] => 0
            [discontinued] => 0
            [featured] => 1
            [gotourl] =>
            [pdf_datasheet] => Cometh4420e_v13.pdf
            [data_sheet_description] =>
            [main_points] =>
            [diagram] => ComEth4420e_diagram.png
            [diagram_alt] => ComEth4420e - Block diagram 3U VPX 40G Ethernet
            [put_forward] => 1
            [status] => 0
            [btn_title] =>
            [trashed] => 0
            [related_prods] => 338,347,374
            [form_factor] => 3U VPX,SOSA
            [type_name] => Ethernet Switches
        )

    [2] => Array
        (
            [id] => 338
            [prodlink] =>
            [product] => IC-FEP-VPX3f
            [title] =>
            [type] => 3
            [prodformfactor] => 7
            [ffstandard1] =>
            [wide] =>
            [processor] =>
            [channelsio] =>
            [samplingrate] =>
            [gpu] =>
            [others] =>
            [sport] =>
            [eport] =>
            [ports] =>
            [portsoption] =>
            [type_management] => 0
            [type_ethernet] => 0
            [type_backplane] => 0
            [type_pci] => 0
            [type_fpga_family] => 4
            [type_processor] => 0
            [management] =>
            [pci_express] => 2
            [img] => IC-FEP-VPX3f_ac-cc.png
            [img_alt] => IC-FEP-VPX3f - 3U VPX VITA 66.5 FPGA board with FMC+ site
            [img_360] =>
            [coldesc] =>
            [cdp] => 0
            [consult] => 0
            [und_dev] => 0
            [discontinued] => 0
            [featured] => 0
            [gotourl] =>
            [pdf_datasheet] => IC-FEP-VPX3f_v06.pdf
            [data_sheet_description] =>
            [main_points] =>
            [diagram] => IC-FEP-VPX3f_diagram.png
            [diagram_alt] => IC-FEP-VPX3f - 3U VPX VITA 66.5 FPGA board with FMC+ site diagram
            [put_forward] => 1
            [status] => 0
            [btn_title] =>
            [trashed] => 0
            [related_prods] => 184,303,385
            [form_factor] => 3U VPX
            [type_name] => FPGA Boards
        )

)

Array
(
    [id] => 347
    [prodlink] =>
    [product] => ComEth4082e
    [title] =>
    [type] => 1
    [prodformfactor] => 7
    [ffstandard1] =>
    [wide] =>
    [processor] =>
    [channelsio] =>
    [samplingrate] =>
    [gpu] =>
    [others] =>
    [sport] =>
    [eport] =>
    [ports] =>
    [portsoption] =>
    [type_management] => 2
    [type_ethernet] => 1,2,3,5
    [type_backplane] => 0
    [type_pci] => 0
    [type_fpga_family] => 0
    [type_processor] => 0
    [management] =>
    [pci_express] => 2
    [img] => Cometh4082e_2ac-cc.png
    [img_alt] => ComEth4082e - VITA 66.5 3U VPX Giga Ethernet Switch
    [img_360] =>
    [coldesc] =>
    [cdp] => 0
    [consult] => 0
    [und_dev] => 0
    [discontinued] => 0
    [featured] => 0
    [gotourl] =>
    [pdf_datasheet] => Cometh4082e_v08.pdf
    [data_sheet_description] =>
    [main_points] =>
    [diagram] => ComEth4082e-diagram.png
    [diagram_alt] => ComEth4082e - VITA 66.5 3U VPX Ethernet Switch diagram
    [put_forward] => 1
    [status] => 0
    [btn_title] =>
    [trashed] => 0
    [related_prods] => 174,184,332
    [form_factor] => 3U VPX
    [type_name] => Ethernet Switches
)

ComEth4082e

3U VPX 1/10/40 Gigabit Ethernet Switch for hybrid copper-optical backplanes

ComEth4082e - VITA 66.5 3U VPX Giga Ethernet Switch
  • 3U VPX
  • Managed Layer 2+/3 switch
  • Slot profile SLT3-SWH-8U8T1J
  • Up to 28 ports
  • 1000BASE-T/KX, 10GBASE-KR/SR, 40GBASE-KR4/SR4
  • Hybrid copper-optical backplane (VITA 46 & VITA 66.5)
Array
(
    [id] => 375
    [prodlink] =>
    [product] => ComEth4420e
    [title] =>
    [type] => 1
    [prodformfactor] => 7,20
    [ffstandard1] =>
    [wide] =>
    [processor] =>
    [channelsio] =>
    [samplingrate] =>
    [gpu] =>
    [others] =>
    [sport] =>
    [eport] =>
    [ports] =>
    [portsoption] =>
    [type_management] => 2
    [type_ethernet] => 1,2,3,5
    [type_backplane] => 0
    [type_pci] => 0
    [type_fpga_family] => 0
    [type_processor] => 0
    [management] =>
    [pci_express] => 1
    [img] => ComEth4420e-aft_aoc-awards22.png
    [img_alt] => ComEth4420e - 3U VPX 40G Ethernet switch
    [img_360] =>
    [coldesc] =>
    [cdp] => 0
    [consult] => 0
    [und_dev] => 0
    [discontinued] => 0
    [featured] => 1
    [gotourl] =>
    [pdf_datasheet] => Cometh4420e_v13.pdf
    [data_sheet_description] =>
    [main_points] =>
    [diagram] => ComEth4420e_diagram.png
    [diagram_alt] => ComEth4420e - Block diagram 3U VPX 40G Ethernet
    [put_forward] => 1
    [status] => 0
    [btn_title] =>
    [trashed] => 0
    [related_prods] => 338,347,374
    [form_factor] => 3U VPX,SOSA
    [type_name] => Ethernet Switches
)

ComEth4420e

3U VPX Dual-Plane Gen3/4 PCIe & 40 Gigabit Ethernet Switch

ComEth4420e - 3U VPX 40G Ethernet switch
  • 3U VPX
  • Managed Layer 2+/3 switch
  • VITA 65.0 SLT3-SWH-6F8U-14.4.15/6F6U-14.4.1
  • Up to 14 Eth. ports and up to 12 PCIe ports
  • 1000BASE-KX/10GBASE-KR, 1000BASE-T (rear)
  • 10GBASE-T/1 * QSFP+ (front)
  • Aligned with the SOSATM Technical Standard
Array
(
    [id] => 338
    [prodlink] =>
    [product] => IC-FEP-VPX3f
    [title] =>
    [type] => 3
    [prodformfactor] => 7
    [ffstandard1] =>
    [wide] =>
    [processor] =>
    [channelsio] =>
    [samplingrate] =>
    [gpu] =>
    [others] =>
    [sport] =>
    [eport] =>
    [ports] =>
    [portsoption] =>
    [type_management] => 0
    [type_ethernet] => 0
    [type_backplane] => 0
    [type_pci] => 0
    [type_fpga_family] => 4
    [type_processor] => 0
    [management] =>
    [pci_express] => 2
    [img] => IC-FEP-VPX3f_ac-cc.png
    [img_alt] => IC-FEP-VPX3f - 3U VPX VITA 66.5 FPGA board with FMC+ site
    [img_360] =>
    [coldesc] =>
    [cdp] => 0
    [consult] => 0
    [und_dev] => 0
    [discontinued] => 0
    [featured] => 0
    [gotourl] =>
    [pdf_datasheet] => IC-FEP-VPX3f_v06.pdf
    [data_sheet_description] =>
    [main_points] =>
    [diagram] => IC-FEP-VPX3f_diagram.png
    [diagram_alt] => IC-FEP-VPX3f - 3U VPX VITA 66.5 FPGA board with FMC+ site diagram
    [put_forward] => 1
    [status] => 0
    [btn_title] =>
    [trashed] => 0
    [related_prods] => 184,303,385
    [form_factor] => 3U VPX
    [type_name] => FPGA Boards
)

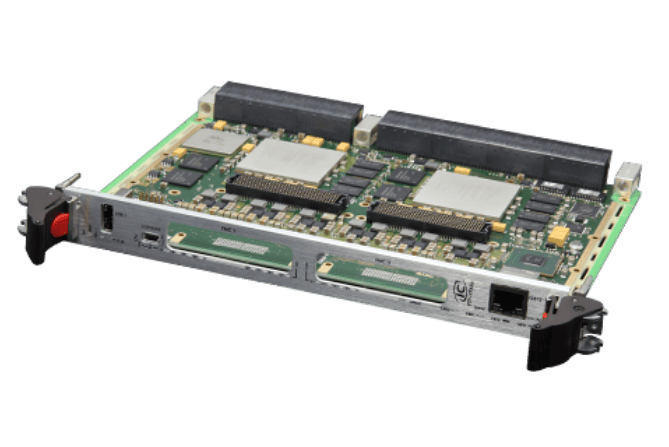

IC-FEP-VPX3f
