The IC-RBP-XMCa XMC module runs as a «black box». It adds a dual attached Ethernet redundancy capability to Single Board Computers or systems in high availability applications.

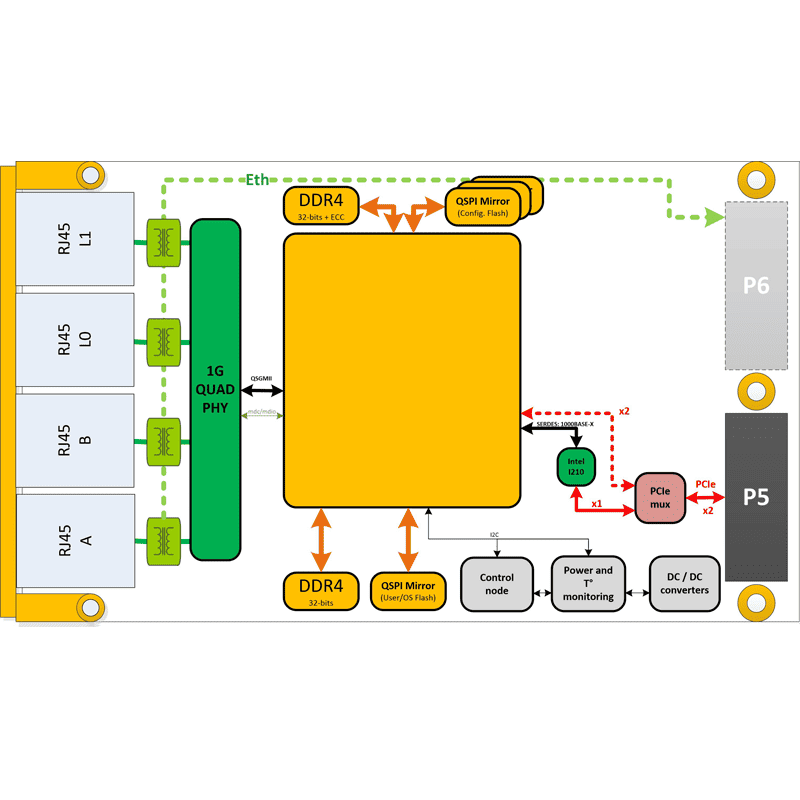

I/O subsystem
• 2 * 10/100/1000BASE-T interfaces, Ports A & B, for double attach-ment on two redundant networks (PRP) or with two bridging nodes (HSR)
• 2 * 10/100/1000BASE-T interfaces, Ports L0 & L1, for attachment of one source (if both interfaces are used, network bonding must be activated)
• 1 * Gigabit Ethernet Controller (NIC) for attachment of a second source (on the carrier).
Accessories
• XMC/PMC carriers or Single Board Computers based on 6U VPX, 3U VPX, 6U VME form-factors.
| Standard | Extended | Rugged | Conduction-cooled 71°C | Conduction-cooled 85°C | |
|---|---|---|---|---|---|
| Coating | Optional | Yes | Yes | Yes | Yes |
| Operat. Temp. | 0 to 55°C | -20 to 65°C | -40°C to 71°C (*) | -40°C to 71°C at the thermal interface (*) | -40°C to 85°C at the thermal interface (*) |
| Rec. airflow | 1 .. 2 m/s | 2 .. 3 m/s | 2 .. 5 m/s | - | - |
| Oper. HR% no cond. | 5 to 90% | 5 to 95% | 5 to 95% | 5 to 95% | 5 to 95% |
| Storage Temp. | -45°C to 85°C | -45°C to 85°C | -45°C to 100°C | -45°C to 100°C | -45°C to 100°C |
| Sinusoidal Vibr | 2G [20..2000]Hz | 2G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz |
| Random Vibr | 0.002g2 /Hz [10..2000]Hz | 0.002g2 /Hz [10..2000]Hz | 0.05g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz |
| Shock 1/2 Sin. 11ms | 20G | 20G | 40G | 40G | 40G |
