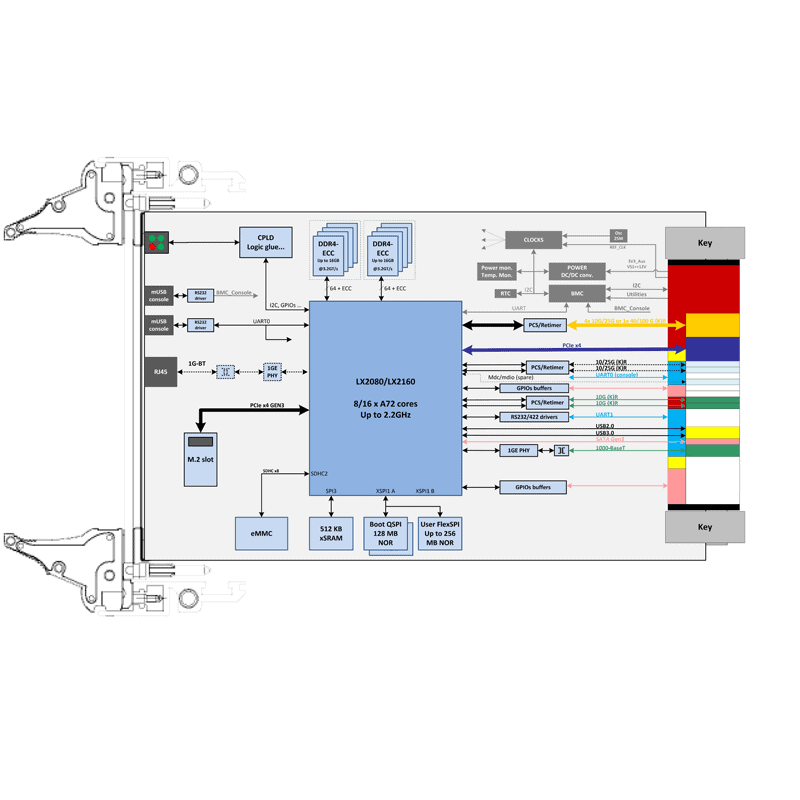

The IC-ARM-VPX3c is a low-power 3U VPX Single Board Computer (SBC) ideal for use in sensor systems, as well as applications needing high multi-threaded performance (target tracking or C4ISR). The IC-ARM-VPX3c is based on a NXP Layerscape® LX2080A/LX2160A multicore communication processor featuring 16 Arm® Cortex®-A72 cores. Layerscape LX2 family provides an excellent efficiency/Thermal Design Power (TDP) ratio with dissipated power as low as 30W for LX2080A and up to 45W for LX2160A. With its hardware accelerator and large caches, this SBC provides outstanding computing performance with powerful packet processing offload and Ethernet controllers.
VPX connector interfaces
• Data Plane (P1)
• 1 * 40GBASE-KR4 (E8)
or
• 1 * 100GBASE-KR4 (E18)
• 4 * 10GBASE-KR or 4E7
• 4 * 25GBASE-KR or 4E8
• Expansion plane (P1)
• 1 * PCIe Gen2/3 x4 port (P3F)
• Control Plane (P1 & P2)
• 2 * 10GBASE-KR (2E7)
• 1 * 1GBASE-T port (E3)
• Storage (P2)
• 1 * SATA3 Gen3 (S3)
• Serial ports (P1 & P2)
• 1 * RS232 UART (P1)
• 1 * maintenance port
• 1 * support for both LVCMOS and RS-232 voltage levels
• RS232 (M3) / RS422 UART (M4) (P2)
• USB (P2)
• 1 * USB2.0 / USB 3.1 (U2)
• 1 * USB2.0 (U1)
• Dedicated power supply pins on P1 and P2
• GPIOs (P1 & P2)
• 1 * USB2.0 / USB 3.1 (G1)
The IC-ARM-VPX3c is aligned with the SOSATM Technical Standard to provide high interoperability in new modular systems. A simple software configuration provides the flexibility to switch between the SOSA Alternate Module Profile Schemes (AMPS) listed below:
MODA3-16.2.15-1-F2C-(E8/E18/4E7/4E8)(P3F)(2E7-E3)(S3-N-U2-U1-M3/M4-G1)
NXP Layerscape® LX2080A/LX2160A
• up to 2.2 GHz
• up to 32 GB DDR4-ECC
• 128MB Quad SPI NOR Flash
• 512 KB xSRAM
• eMMC
• All protected by NVMRO
Board Management Controller
• VITA 46.11-2015 compliant with full Tier-2 support and HOST 3.0 extensions
• PCI µ-controller for System Management (per VITA 46.11)
• RTC with supercap backup
• Elapse Time Counter
• DC and Thermal monitoring
Accessories
Console cable
A dedicated SUBD-9 to mini-USB cable allows to connect standard RS-232 port to front-panel CPU and BMC console ports.
Engineering kit
Interface Concept has developed this tool to provide a high-density access to program/debug multiple target types like CPLDs, FPGAs, Processors, and Microcontrollers… used on IC products. It handles multiple interfaces like JTAG, I2C, SPI, COP, emulation bus, GPIO for factory program- ming as well as user’s debugging.
| Standard | Extended | Rugged | Conduction-cooled 71°C | Conduction-cooled 85°C | |
|---|---|---|---|---|---|
| Coating | Optional | Yes | Yes | Yes | Yes |
| Operat. Temp. | 0 to 55°C | -20 to 65°C | -40°C to 71°C (*) | -40°C to 71°C at the thermal interface (*) | -40°C to 85°C at the thermal interface (*) |
| Rec. airflow | 1 .. 2 m/s | 2 .. 3 m/s | 2 .. 5 m/s | - | - |
| Oper. HR% no cond. | 5 to 90% | 5 to 95% | 5 to 95% | 5 to 95% | 5 to 95% |
| Storage Temp. | -45°C to 85°C | -45°C to 85°C | -45°C to 100°C | -45°C to 100°C | -45°C to 100°C |
| Sinusoidal Vibr | 2G [20..2000]Hz | 2G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz |
| Random Vibr | 0.002g2 /Hz [10..2000]Hz | 0.002g2 /Hz [10..2000]Hz | 0.05g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz |
| Shock 1/2 Sin. 11ms | 20G | 20G | 40G | 40G | 40G |
