Overview

The new VPX 6U Digital Signal Processing (DSP) board IC-INT-VPX6d is the result of the experience and expertise gained by Interface Concept in the High Performance Embedded Computing (HPEC) field.

Taking advantage of the latest Intel® 14nm Xeon® enhancements and the intercommunication capabilities provided by the OpenVPX standard, the IC-INT-VPX6d is the current most comprehensive dual Intel® processor design for applications requiring the highest processing capabilities together with “controlled” power consumption.

In the same spirit, IC offers the users with its own boot loader the security of always being able to support them as expected.

Features

Processing Unit (per processor)
• Intel® Xeon® D-1500 processor
• DDR4 with ECC (up to 64GB)
• Boot flash memory
• On board SATA SSD (up to 64GB)
• TPM 2.0

Communication subsystem (per processor)
• 1 * PCIe x8 to PCIe switch
• 1 * PCIe x4 to second processor
• 2 * USB ports (2 rear)
• 1 * Console port
• 2 * rear SATA interfaces
• GPIOs (Rear)
• 1 * GbE port (attached to the switch)
• 1 * 10GBASE-KR (rear)

Ethernet Switch
• 7 * GbE ports (rear.2*1000BASE-T and 5*1000BASE-BX)

Extension (Node A)
• 1 * XMC slot (PCIe x8)
• 20 differential pairs (from Pn6 to P6 –
X12d+X8d)

FPGA (Node A)
• 1 * AMD Kintex™ 7 FPGA
• MGT x4 (to P4)
• 16 differential pairs (to P3)

Miscellaneous
• BMC for System Management (per VITA 46.11)
• Power supply monitoring / Temperature
sensor
• Status LEDs
• Engineering kit for debug: JTAG
• 6U Rear Transition Module

The IC-INT-VPX6d is a 6U x 5HP (1”) VPX board compliant
with 6U module definitions of the VITA 46.0 standard
(0.80 or 0.85” : please consult us),
available in air-cooled and conduction cooled (without any front I/O) versions.

Note: this board is compatible with our previous versions of Intel® Core™ i7 (Gen 2 & 3) SBCs
to allow customers to upgrade existing systems and/or maintain existing design for long term support.

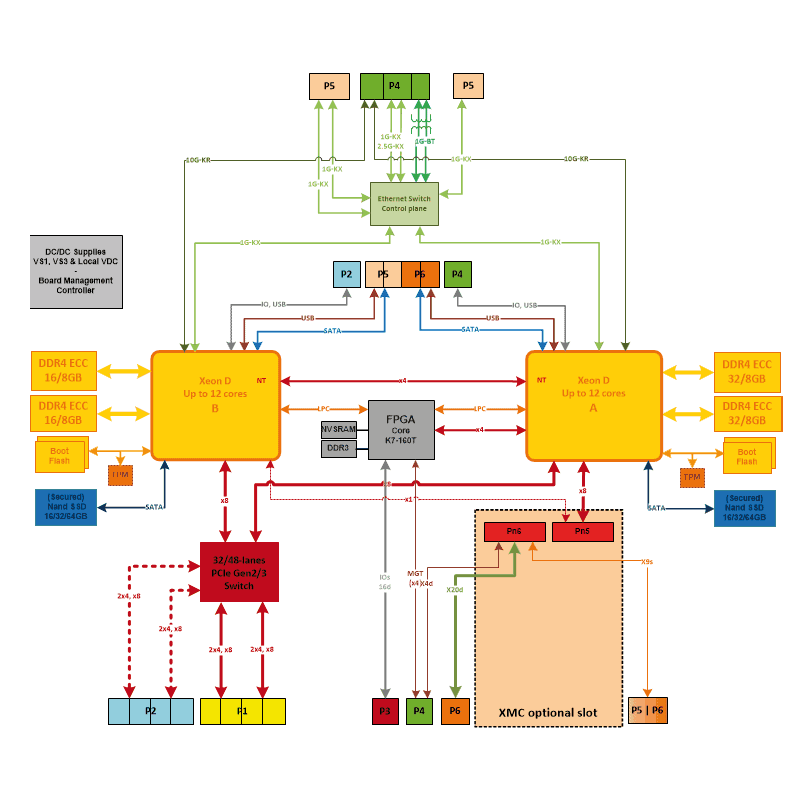

Diagram

IC-INT-VPX6d - diagram

Grades

StandardExtendedRuggedConduction-cooled 71°CConduction-cooled 85°C
CoatingOptionalYesYesYesYes
Operat. Temp.0 to 55°C-20 to 65°C-40°C to 71°C (*)-40°C to 71°C at the thermal interface (*)-40°C to 85°C at the thermal interface (*)
Rec. airflow1 .. 2 m/s2 .. 3 m/s2 .. 5 m/s--
Oper. HR% no cond.5 to 90%5 to 95%5 to 95%5 to 95%5 to 95%
Storage Temp.-45°C to 85°C-45°C to 85°C-45°C to 100°C-45°C to 100°C-45°C to 100°C
Sinusoidal Vibr2G [20..2000]Hz2G [20..2000]Hz5G [20..2000]Hz5G [20..2000]Hz5G [20..2000]Hz
Random Vibr0.002g2 /Hz [10..2000]Hz0.002g2 /Hz [10..2000]Hz0.05g2 /Hz [10..2000]Hz0.1g2 /Hz [10..2000]Hz0.1g2 /Hz [10..2000]Hz
Shock 1/2 Sin. 11ms20G20G40G40G40G
