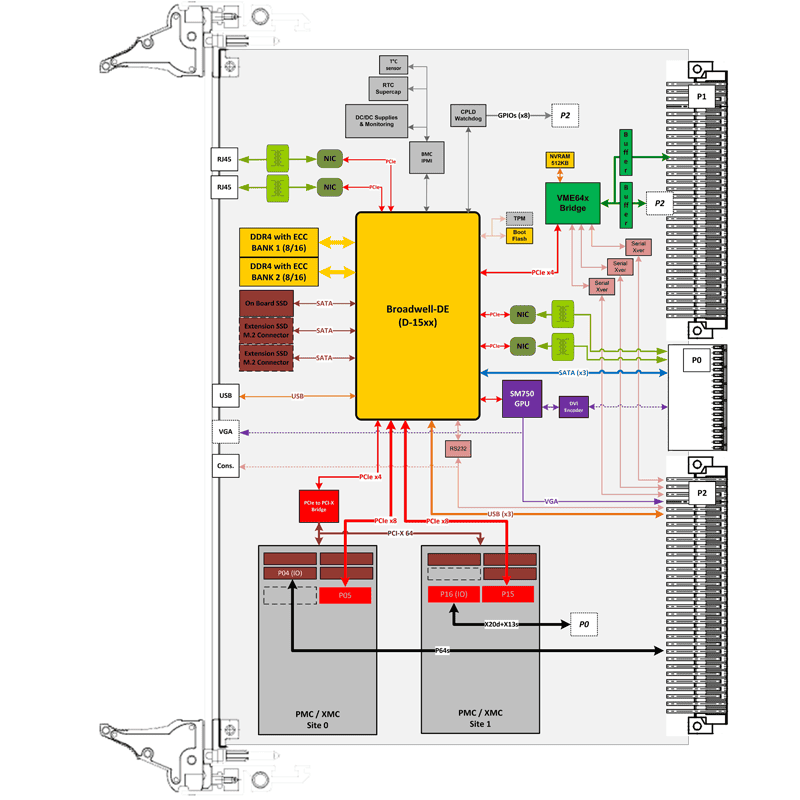

The IC-INT-VMEc is a general-purpose Single Board Computer, aimed at lengthening the lifetime of legacy VMEbus systems.
Processor Unit
• 1* Intel® Xeon® D-1519 or D-1539
• D-1519
• Cache = 6MB
• Core speed = 1.5 GHz
• Thermal design power = 25W
• D-1539
• Cache = 12MB
• Core speed = 1.6 GHz
• Thermal design power = 35W
• up to 2*8 GB DDR4 with ECC (optionally up to 2*16 GB)
• Calendar clock with supercap backup
• Thermal monitor sensor
Storage subsystem
• up to 32 GB SLC On-board SATA SSD
• 2 M.2 SATA Key M SSD connectors
• 3 * SATA ports on P0
Communication subsystem
• 4 * Gigabit Ethernet ports (2 front/2 rear)
• 4 * USB ports (1 front & 3 rear)
• 1 * console port (front or rear)
• 3 * multimode serial ports (RS422, RS485, RS232)
1* rear or front VGA (P2) or DVI (P0)
I/O subsystem
• VME64x
• Two PMC/XMC slots
• slot 0: compatible with VITA35 P4V2-64ac
• slot 1: 20 differential pairs (X20d) and 13 single-ended (X13s) connected to VME P0 from Pn6 (X16d + X10s with DVI manufacturing option)
Accessories
6U Rear Transition Module
The IC-INT-VMEc is available in air-cooled and conduction-cooled (without any front I/O) versions compliant with VITA 47 classes.
| Standard | Extended | Rugged | Conduction-cooled 71°C | Conduction-cooled 85°C | |
|---|---|---|---|---|---|
| Coating | Optional | Yes | Yes | Yes | Yes |
| Operat. Temp. | 0 to 55°C | -20 to 65°C | -40°C to 71°C (*) | -40°C to 71°C at the thermal interface (*) | -40°C to 85°C at the thermal interface (*) |
| Rec. airflow | 1 .. 2 m/s | 2 .. 3 m/s | 2 .. 5 m/s | - | - |
| Oper. HR% no cond. | 5 to 90% | 5 to 95% | 5 to 95% | 5 to 95% | 5 to 95% |
| Storage Temp. | -45°C to 85°C | -45°C to 85°C | -45°C to 100°C | -45°C to 100°C | -45°C to 100°C |
| Sinusoidal Vibr | 2G [20..2000]Hz | 2G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz |
| Random Vibr | 0.002g2 /Hz [10..2000]Hz | 0.002g2 /Hz [10..2000]Hz | 0.05g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz |
| Shock 1/2 Sin. 11ms | 20G | 20G | 40G | 40G | 40G |
