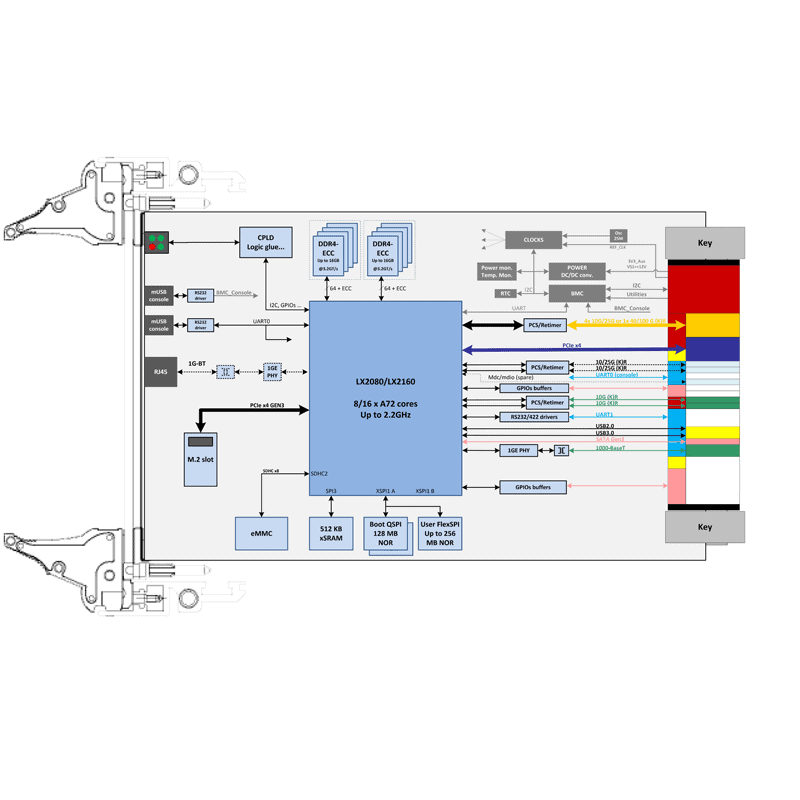

The IC-ARM-VPX3c is a low-power 3U VPX Single Board Computer (SBC) ideal for use in sensor systems, as well as applications needing high multi-threaded performance (target tracking or C4ISR).
VPX connector interfaces
• Data Plane (P1)
• 1 * 40GBASE-KR4 (E8)
or
• 1 * 100GBASE-KR4 (E18)
• 4 * 10GBASE-KR or 4E7
• 4 * 25GBASE-KR or 4E8
• Expansion plane (P1)
• 1 * PCIe Gen2/3 x4 port (P3F)
• Control Plane (P1 & P2)
• 2 * 10GBASE-KR (2E7)
• 1 * 1GBASE-T port (E3)
• Storage (P2)
• 1 * SATA3 Gen3 (S3)
• Serial ports (P1 & P2)
• 1 * RS232 UART (P1)
• 1 * maintenance port
• 1 * support for both LVCMOS and RS-232 voltage levels
• RS232 (M3) / RS422 UART (M4) (P2)
• USB (P2)
• 1 * USB2.0 / USB 3.1 (U2)
• 1 * USB2.0 (U1)
• Dedicated power supply pins on P1 and P2
• GPIOs (P1 & P2)
• 1 * USB2.0 / USB 3.1 (G1)
The IC-ARM-VPX3c is aligned with the SOSATM Technical Standard to provide high interoperability in new modular systems. A simple software configuration provides the flexibility to switch between the SOSA Alternate Module Profile Schemes (AMPS) listed below:
MODA3-16.2.15-1-F2C-(E8/E18/4E7/4E8)(P3F)(2E7-E3)(S3-N-U2-U1-M3/M4-G1)
NXP Layerscape® LX2080A/LX2160A
• up to 2.2 GHz
• up to 32 GB DDR4-ECC
• 128MB Quad SPI NOR Flash
• 512 KB xSRAM
• eMMC
• All protected by NVMRO
Board Management Controller
• VITA 46.11-2015 compliant with full Tier-2 support and HOST 3.0 extensions
• PCI µ-controller for System Management (per VITA 46.11)
• RTC with supercap backup
• Elapse Time Counter
• DC and Thermal monitoring
Accessories
Console cable
A dedicated SUBD-9 to mini-USB cable allows to connect standard RS-232 port to front-panel CPU and BMC console ports.
Engineering kit
Interface Concept has developed this tool to provide a high-density access to program/debug multiple target types like CPLDs, FPGAs, Processors, and Microcontrollers… used on IC products. It handles multiple interfaces like JTAG, I2C, SPI, COP, emulation bus, GPIO for factory program- ming as well as user’s debugging.
| Standard | Extended | Rugged | Conduction-cooled 71°C | Conduction-cooled 85°C | |
|---|---|---|---|---|---|
| Coating | Optional | Yes | Yes | Yes | Yes |
| Operat. Temp. | 0 to 55°C | -20 to 65°C | -40°C to 71°C (*) | -40°C to 71°C at the thermal interface (*) | -40°C to 85°C at the thermal interface (*) |
| Rec. airflow | 1 .. 2 m/s | 2 .. 3 m/s | 2 .. 5 m/s | - | - |
| Oper. HR% no cond. | 5 to 90% | 5 to 95% | 5 to 95% | 5 to 95% | 5 to 95% |
| Storage Temp. | -45°C to 85°C | -45°C to 85°C | -45°C to 100°C | -45°C to 100°C | -45°C to 100°C |
| Sinusoidal Vibr | 2G [20..2000]Hz | 2G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz |
| Random Vibr | 0.002g2 /Hz [10..2000]Hz | 0.002g2 /Hz [10..2000]Hz | 0.05g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz |
| Shock 1/2 Sin. 11ms | 20G | 20G | 40G | 40G | 40G |
