Based on the latest AMD 20nm FPGA family, the IC-FEP-VPX3f enhances the front-end processing (FEP) product line of Interface Concept, as the first VITA 66.5 compliant FPGA board on the market today.
The AMD Kintex™ UltraScale™ FPGA provides a better performance/power consumption ratio compared to previous FPGAs, and makes the IC-FEP-VPX3f the perfect solution for applications requiring DSP intensive processing in a 3U VPX form factor.
The IC-FEP-VPX3f and other IC building blocks (Intel® and PowerPC SBCs, Ethernet Switches & Routers, FMC) running our Signal Processing Reference Design are the ideal platforms to users who are willing to streamline development by concentrating their efforts on their most strategical tasks.

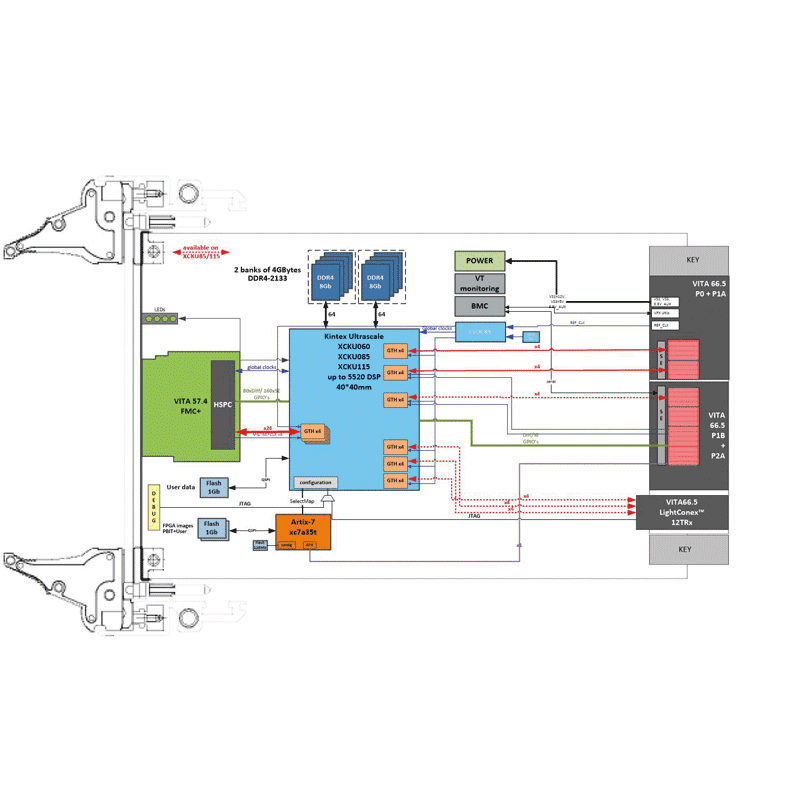

Processing Unit
• AMD Kintex™ UltraScale™ KU060, KU85 or
KU115
• Two banks of DDR4: 64-bit wide,
up to 4GB each
• 2 * 128 MBytes of QSPI flash
(bitstreams storage)
• 1 * 128 MBytes of QSPI flash
(User Data storage)
VPX Interfaces
• Up to three 4-lane fabric ports on P1/P2
– 3 * GTH x4 (Fat Pipes P1A, P1B) (*)
– Optional 3 * GTH x4 to LightConex™
12TRX (*)
(*) depending on FPGA models
• 28 GPIO’s from FPGA on P2, usable as
single-ended or differential pairs
FMC+ VITA 57.4 interfaces
• 6 * GTH x4 links
• 80 differential pairs
• 6 reference clocks
Miscellaneous
• PIC μ-controller for System Management
to VITA 46.11
• 4 LEDs
Accessories
• Engineering kit : JTAG ports for direct
FPGA configuration
• Rear Transition Module
| Standard | Extended | Rugged | Conduction-cooled 71°C | Conduction-cooled 85°C | |
|---|---|---|---|---|---|
| Coating | Optional | Yes | Yes | Yes | Yes |
| Operat. Temp. | 0 to 55°C | -20 to 65°C | -40°C to 71°C (*) | -40°C to 71°C at the thermal interface (*) | -40°C to 85°C at the thermal interface (*) |
| Rec. airflow | 1 .. 2 m/s | 2 .. 3 m/s | 2 .. 5 m/s | - | - |
| Oper. HR% no cond. | 5 to 90% | 5 to 95% | 5 to 95% | 5 to 95% | 5 to 95% |
| Storage Temp. | -45°C to 85°C | -45°C to 85°C | -45°C to 100°C | -45°C to 100°C | -45°C to 100°C |
| Sinusoidal Vibr | 2G [20..2000]Hz | 2G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz |
| Random Vibr | 0.002g2 /Hz [10..2000]Hz | 0.002g2 /Hz [10..2000]Hz | 0.05g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz |
| Shock 1/2 Sin. 11ms | 20G | 20G | 40G | 40G | 40G |
