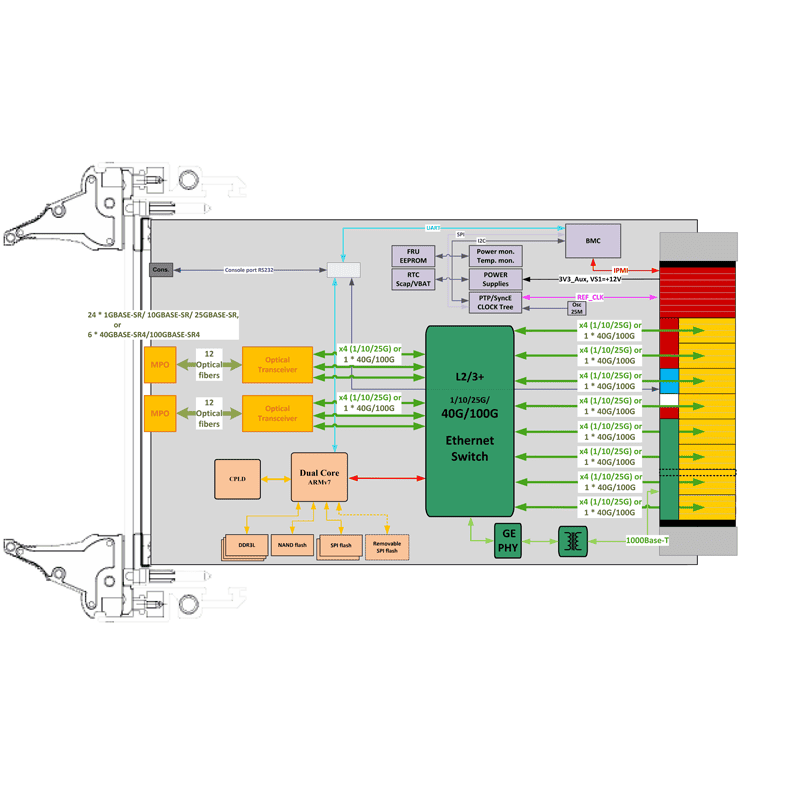

The ComEth4682e is a 3U VPX Gigabit Ethernet switch, based on a new generation of multi-layer Ethernet matrix for high-speed embedded interconnect applications requiring 10/25G
and 40/100G connectivity.
Layer 1/2
• Speed, duplex, auto-negotiation, flow control and power management on all ports
• VLAN support / 802.1Q tagging
• Port mirroring
• Port rights management
• Static MAC address list
• Static IPM address list
• Port static authentication
• IEEE 802.1X authentication
• Ingress filtering
• Storm prevention
• QoS on all ports
• Ingress / egress access lists
• Rate limiting
• QoS remarking
• Static trunking / LACP
• STP / RSTP
• IGMP/MLD snooping
Security management
• Login/password, key or certificate
authentication
• Secure switch management by HTTPS,
SSH or SNMPv3
• 802.1X port-based authentication
QoS
• Layer 2 802.1p User Priority tagging
• Layer 3 IP DSCP (Diffsev)
• Access Control Lists (L2, L3, L4)
Multicast
• IGMP snooping (v1, v2, v3)
• MLD snooping (v1, v2)
Layer3
• ICMP
• Proxy-ARP
• DHCP-relay
• NAT
• IPv4 routing (unicast/multicast)
• Static IP routing (unicast and multicast)
• RIPv1, RIPv2 (IPv4)
• RIPng(IPv6)
• OSPFv2 (IPv4) / OSPFv3(IPv6)
Others
• PBIT results
• Temperature information
• CPU load
• Switch state
• Global and detailed ports statistics
• VLANs statistics
• Bridge egress, ingress and RMON statistics
• Ingress and egress access lists statistics
• Rate limiting statistics
• Queues and ingress buffers counters
• IGMP snooping state by VLAN and by port
• MAC address table access
• IPM address table access
• STP/RTSP state
• 1588-PTP-Transparent mode
| Standard | Extended | Rugged | Conduction-cooled 71°C | Conduction-cooled 85°C | |
|---|---|---|---|---|---|
| Coating | Optional | Yes | Yes | Yes | Yes |
| Operat. Temp. | 0 to 55°C | -20 to 65°C | -40°C to 71°C (*) | -40°C to 71°C at the thermal interface (*) | -40°C to 85°C at the thermal interface (*) |
| Rec. airflow | 1 .. 2 m/s | 2 .. 3 m/s | 2 .. 5 m/s | - | - |
| Oper. HR% no cond. | 5 to 90% | 5 to 95% | 5 to 95% | 5 to 95% | 5 to 95% |
| Storage Temp. | -45°C to 85°C | -45°C to 85°C | -45°C to 100°C | -45°C to 100°C | -45°C to 100°C |
| Sinusoidal Vibr | 2G [20..2000]Hz | 2G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz |
| Random Vibr | 0.002g2 /Hz [10..2000]Hz | 0.002g2 /Hz [10..2000]Hz | 0.05g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz |
| Shock 1/2 Sin. 11ms | 20G | 20G | 40G | 40G | 40G |
