Designed for applications requiring high performance, low power, and multiple I/O capabilities, the IC-PPC-VPX3d is a complete and versatile SBC dedicated to 3U VPX compact systems.
Coming with the latest PowerPC QorIQ multicore processor, the IC-PPC-VPX3d is capable of meeting compute-intensive needs, in industrial and harsh environments.
In order meet High Performance Embedded Computing systems (HPEC) requirements, the Interface Concept software suite makes the integration of the IC-INT-VPX3d together with the IC FPGA (IC-FEP-xxx), switch (ComEth) and carriers boards easy.

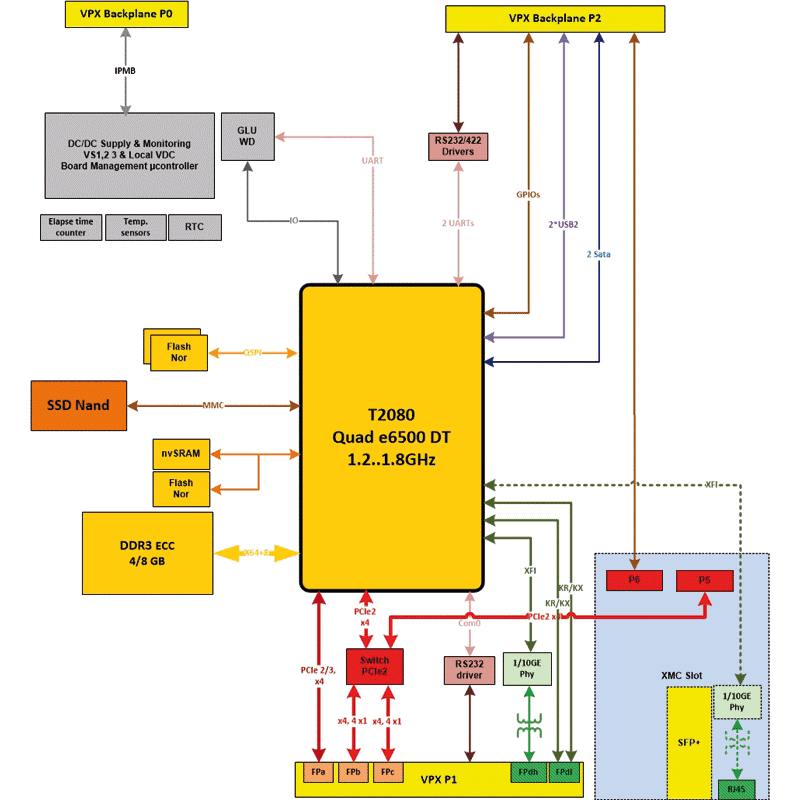

Processing Unit
One QorIQ T2080 (1.2 to 1.8 GHz) with
• 4 GB (up to 8 GB) DDR3-ECC
• Flash NOR
• nvSRAM
• SSD
Communication subsystem
• one PCIe Gen2/3 x4 port (P1a)
• two PCIe Gen2 x4 port (P1b, P1c), each configurable as four x1 ports
• 2 * Ethernet ports available as 10GBase-KR or GigaBase-KX (P1d)
• 1 * Ethernet port available as 10GBase-T (P1d)
• 1 * RS232 console port available on P1
• 2 * RS422/RS422 UART available on P2
• 2 * USB2 ports available on P2
• 2 * SATA ports available on P2
• GPIOs on P2
Options (exclusive)
• 1 * XMC slot:
XMC PCIe x4,
IOs on P2 (VITA 46.9 X8d + X12d)
• 1 *10G Ethernet port (auto-media detect 10GBase-T/SFP+)
Board Management Controller
PIC µ-controller for System Management (per VITA 46.11):
• RTC with supercap backup
• Elapse Time Counter
• DC and Thermal monitoring
Accessories
• Engineering kit for debug : JTAG/COP, console,…
• 3U Rear Transition Module
The IC-PPC-VPX3d is a VPX 3U board compliant with 3U module definitions of the VITA 46.0 standard.
The IC-PPC-VPX3d is available in air-cooled and conduction-cooled versions.
Front connectors
• Leds
• Option: RJ45/SFP+ for 10G Ethernet port
P1 connector
• one PCIe Gen3 x4 port (P1A)
• two PCIe Gen2 x4 ports (P1B, P1C)
• two 10GBase-KR/GigaBase-KX ports (P1D)
• one 10GBase-T port (P1D)
• one RS232 cosnole port
P2 connector
• two RS232/RS422 UART
• 6*GPIOs. Each input can be individually configured as a source of interrupt (level or front)
• two USB2 ports
• two SATA ports
• Option: XMC IOs (VITA 46.9 X8d + X12d)
| Standard | Extended | Rugged | Conduction-cooled 71°C | Conduction-cooled 85°C | |
|---|---|---|---|---|---|
| Coating | Optional | Yes | Yes | Yes | Yes |
| Operat. Temp. | 0 to 55°C | -20 to 65°C | -40°C to 71°C (*) | -40°C to 71°C at the thermal interface (*) | -40°C to 85°C at the thermal interface (*) |
| Rec. airflow | 1 .. 2 m/s | 2 .. 3 m/s | 2 .. 5 m/s | - | - |
| Oper. HR% no cond. | 5 to 90% | 5 to 95% | 5 to 95% | 5 to 95% | 5 to 95% |
| Storage Temp. | -45°C to 85°C | -45°C to 85°C | -45°C to 100°C | -45°C to 100°C | -45°C to 100°C |
| Sinusoidal Vibr | 2G [20..2000]Hz | 2G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz |
| Random Vibr | 0.002g2 /Hz [10..2000]Hz | 0.002g2 /Hz [10..2000]Hz | 0.05g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz |
| Shock 1/2 Sin. 11ms | 20G | 20G | 40G | 40G | 40G |
