IC-ADDA-VPX3a

#d54444

Overview

The IC-ADDA-VPX3a 3U VPX FPGA bundle is a combination of one of our 3U VPX FPGA boards – the IC-FEP-VPX3h together with one of our FPGA Mezzanine Cards – the IC-ADDA-FMCPa.

The IC-ADDA-VPX3a is part of our Front End Processing product line to meet the increasing demand in fast data sampling for embedded systems especially in the ﬁeld of Software-deﬁned Radio, Radar and Electronic Warfare and solutions. The IC-ADDA-VPX3a 3U VPX board is based on an AMD Versal™ FPGA, a combination of adaptable processing and acceleration engines with programmable logic and conﬁgurable connectivity. These high-performance capabilities enable customized and heterogeneous hardware solutions for a wide array of applications. Such solutions provide a higher performance/watt ratio over conventionnal FPGAs, CPUs and GPUs.

Features

Processing Unit

AMD Versal™ AI Core, AI Edge or Prime
Two banks of DDR4: 64-bit wide, up to 8GB each
3 * SPI flash (bitstreams storage)
1 * 256 MBytes of FlexSPI flash (User Data storage)
1 * eMMC module

FMC+ VITA 57.4 interfaces

6 * GTH x4 links
up to 80 differential pairs (*)
6 reference clocks
(*) depending on FPGA models

BMC

VITA 46.11-2015 hardware compliant
RTC with supercap backup
DC and Thermal sensors

Accessories

Rear Transition Module

Analog inputs

Two ADCs channels with 12-bit resolution
Sampling rate up to 20 Gsps
SMPM connectors with lock feature
Input impedance 50 Ohm AC coupled
Full scale amplitude 500mV peak-peak (-2dBm)
Analog input bandwidth (-3dB) 0.5GHz – 18GHz

Analog Outputs

Two DACs channels with 16-bit resolution
Sampling rate up to 28 Gsps
SMPM connectors with lock feature
Output impedance 50 Ohm AC coupled
Full scale amplitude -2.6dBm for L nad, -3.5 dBm for X band
Analog output bandwidth (-3dB) 2GHz – 18GHz

CLK/SYSREF Input

SMPM connectors with lock feature
Input impedance 50 Ohm AC coupled
Input level. Sine wave: 0 to +10dB. Square wave
Frequency range: CLK from 400 MHz to 800 MHz

P0 connector

VS3, 3V3_AUX, VS1 (+12V for FMC)
REF_CLK
I2C bus, utilities (SYSRESET, NVMRO, GAx)

P1 connector

1* Fat Pipe (Data plane) supporting MRMAC instantiation
1 * Ultra Thin Pipe (Data plane)
2 * Fat Pipe (Expansion plane) supporting CPM4 instantiation
1 * Ultra Thin Pipe supporting 1G/10G/25G Ethernet (Control Plane)
1 * RS232 port

P2A and P2B connectors (VITA 66.5) can be populated with

VITA 66.5 Style C or
VITA 66.5 Style D connectors

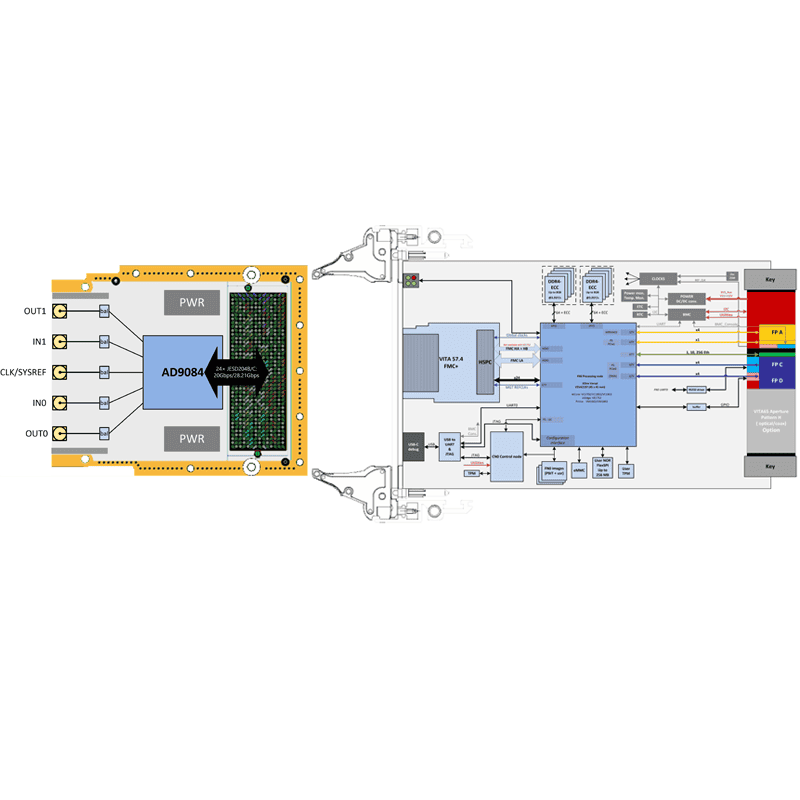

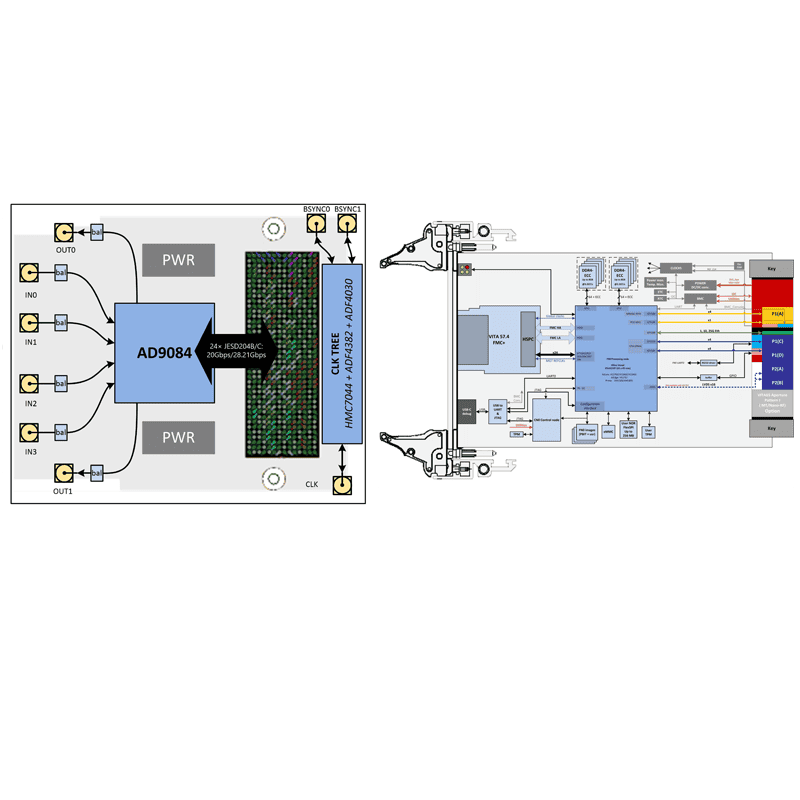

Diagram

Grades (*)

	Conduction-cooled 85°C
Coating	Yes
Operat. Temp.	-40°C to 85°C at the thermal interface (*)
Rec. airflow	-
Oper. HR% no cond.	5 to 95%
Storage Temp.	-45°C to 100°C
Sinusoidal Vibr	5G [20..2000]Hz
Random Vibr	0.1g2 /Hz [10..2000]Hz
Shock 1/2 Sin. 11ms	40G

(*) Grades and conditions are subject to availability according to IC products. Please consult us or refer to user manuals.
