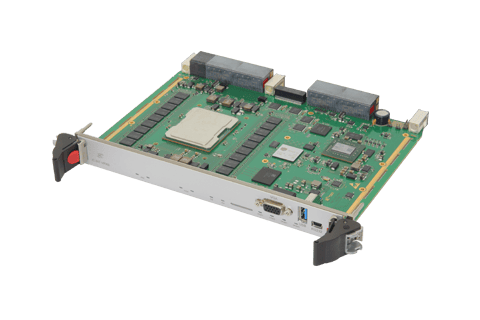

Interface Concept leverages its design expertise in rugged, high quality, secure solutions together with the cutting-edge technical enhancements of the Intel Intel ® Xeon ® D-2700 processor, (12, 16 or 20 cores) to devise a concentrate of technology on a 6U OpenVPX platform – the IC-INT-VPX6i SBC.
Dedicated to Edge applications and High computer needs, the ICX-D (code name Ice Lake-D) processor provides the IC-INT-VPX6i module with performance, efficiency and flexibility required by the most demanding applications in the industrial and mil-aero sectors: intelligence surveillance (C4ISR), electronic warfare and broadly speaking, all applications requiring AI hardware platforms.

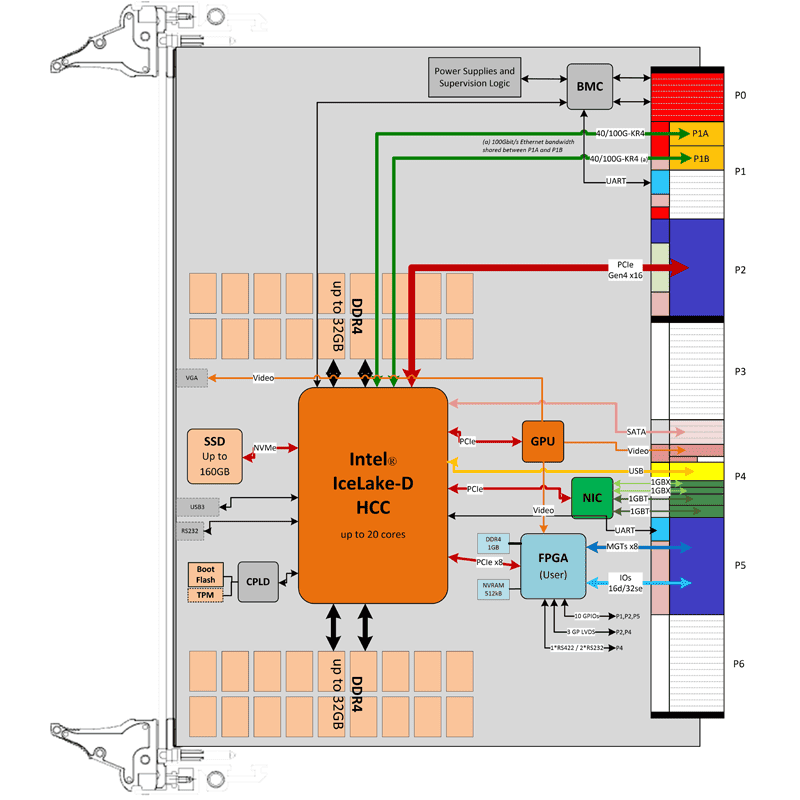

Processing Unit (per processor)
• Intel® Xeon® D-2700 (20 cores)
• 4 channels of DDR4 with ECC (up to 16GB per channel)
• SSD NVME (40 to 160 GB)
• 4 * SATA Gen3 ports [RB_P4]
• 2 * USB3 ports [RB_P4]
• 10 * GPIOs [RB_P1, P2 and P5]
• 2 * GP LVDS (P2)
1 * AMD UltraScale™ FPGA
• KU35 or KU3P
• DDR4 1GB
• NVSRAM 512kB
• 8 SerDes ports to VPX [RB_P5]
• 16 Diff. IOs to VPX [RB_P5]
Data Plane
• 2 * 40G/100GKR4 (100Gbit/s Ethernet bandwidth shared between P1A and P1B)
Control Plane
• 2 * 1000BASE-T Ethernet
• 2 * 1000BASE-KX Ethernet
Expansion Plane
• 1 * PCIe x16 Gen4 [RB_P2] splittable as
2* x8 or 4* x4 PCIe ports
Graphic
• 1 * GPU DVI Interface
Others video capabilities (eg : ARINC818) are available on request.
Front Panel (air-cooled only)
• 1 * VGA output
• 1 * USB3 port
• 1 * RS232 console port
The IC-INT-VPX6i is a 6U x 5HP (1”) VPX board compliant with 6U module definitions of the VITA 46.0 standard (0.80” or 0.85”: please consult us).
| Standard | Extended | Rugged | Conduction-cooled 71°C | Conduction-cooled 85°C | |
|---|---|---|---|---|---|
| Coating | Optional | Yes | Yes | Yes | Yes |
| Operat. Temp. | 0 to 55°C | -20 to 65°C | -40°C to 71°C (*) | -40°C to 71°C at the thermal interface (*) | -40°C to 85°C at the thermal interface (*) |
| Rec. airflow | 1 .. 2 m/s | 2 .. 3 m/s | 2 .. 5 m/s | - | - |
| Oper. HR% no cond. | 5 to 90% | 5 to 95% | 5 to 95% | 5 to 95% | 5 to 95% |
| Storage Temp. | -45°C to 85°C | -45°C to 85°C | -45°C to 100°C | -45°C to 100°C | -45°C to 100°C |
| Sinusoidal Vibr | 2G [20..2000]Hz | 2G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz |
| Random Vibr | 0.002g2 /Hz [10..2000]Hz | 0.002g2 /Hz [10..2000]Hz | 0.05g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz |
| Shock 1/2 Sin. 11ms | 20G | 20G | 40G | 40G | 40G |
