IC-SFP-FMCa

Two SFP FPGA Mezzanine Card

FMC
VITA57.1 HPC Compliant
2*SFP+ cages
2*reference clocks

The IC-SFP-FMCa board is part of our Front End Processing product line to respond to the increasing demand in fast data communication for High Performance Embedded Computing systems.

Designed for applications where high data transmissions are required, the IC-SFP-FMCa is a VITA 57.1 FPGA Mezzanine Card (FMC) that offers a flexible connectivity with our FPGA 3U and 6U Front End Processing boards running our Signal Processing Reference Design (including
signal acquisition, Processing DMA Engine, data storage, signal generation,…) thus allowing customers to streamline development of high performance signal acquisition systems by concentrating their efforts on their most critical tasks.

DATASHEET

IC-SFP-FMCa - Two SFP FPGA Mezzanine Card diagram

✖

Criterion	Standard	Extended	Rugged	Conduction-cooled 71°C	Conduction-cooled 85°C
Coating	Optional	Yes	Yes	Yes	Yes
Operat. Temp.	0 to 55°C	-20 to 65°C	-40°C to 71°C or 85°C (*)	-40°C to 71°C at the thermal interface (*)	-40°C to 85°C at the thermal interface (*)
Rec. airflow	1 .. 2 m/s	2 .. 3 m/s	2 .. 5 m/s	-	-
Oper. HR% no cond.	5 to 90%	5 to 95%	5 to 95%	5 to 95%	5 to 95%
Storage Temp.	-45°C to 85°C	-45°C to 85°C	-45°C to 100°C	-45°C to 100°C	-45°C to 100°C
Sinusoidal Vibr	2G [20..2000]Hz	2G [20..2000]Hz	5G [20..2000]Hz	5G [20..2000]Hz	5G [20..2000]Hz
Random Vibr	0.002g2 /Hz [10..2000]Hz	0.002g2 /Hz [10..2000]Hz	0.05g2 /Hz [10..2000]Hz	0.1g2 /Hz [10..2000]Hz	0.1g2 /Hz [10..2000]Hz
Shock 1/2 Sin. 11ms	20G	20G	40G	40G	40G

(*) Temperature grades are subject to availability according to IC products. Please consult us.

Related products

Array
(
    [id] => 244
    [prodlink] =>
    [product] => IC-FEP-VPX6e
    [title] => 6U VPX Xilinx Ultrascale FPGA board - IC-FEP-VPX6e
    [type] => 3
    [prodformfactor] => 8
    [ffstandard1] =>
    [wide] =>
    [processor] =>
    [channelsio] =>
    [samplingrate] =>
    [gpu] =>
    [others] =>
    [sport] =>
    [eport] =>
    [ports] =>
    [portsoption] =>
    [type_management] => 0
    [type_ethernet] => 0
    [type_backplane] => 0
    [type_pci] => 0
    [type_fpga_family] => 5
    [type_processor] => 0
    [management] =>
    [pci_express] => 2
    [img] => IC-FEP-VPX6e_2boards.png
    [img_alt] => IC-FEP-VPX6e photo - 6U VPX Xilinx Ultrascale FPGA board
    [img_360] =>
    [coldesc] =>
    [cdp] => 0
    [consult] => 0
    [und_dev] => 0
    [discontinued] => 0
    [featured] => 0
    [gotourl] =>
    [pdf_datasheet] => IC-FEP-VPX6e_v09.pdf
    [data_sheet_description] =>
    [main_points] =>
    [diagram] => IC-FEP-VPX6e_diagram.png
    [diagram_alt] => IC-FEP-VPX6e diagram - 6U VPX Ultrascale FPGA board with two FMC+ sites
    [put_forward] => 1
    [status] => 0
    [btn_title] =>
    [trashed] => 0
    [related_prods] => 187,222,365
    [form_factor] => 6U VPX
    [type_name] => FPGA Boards
)

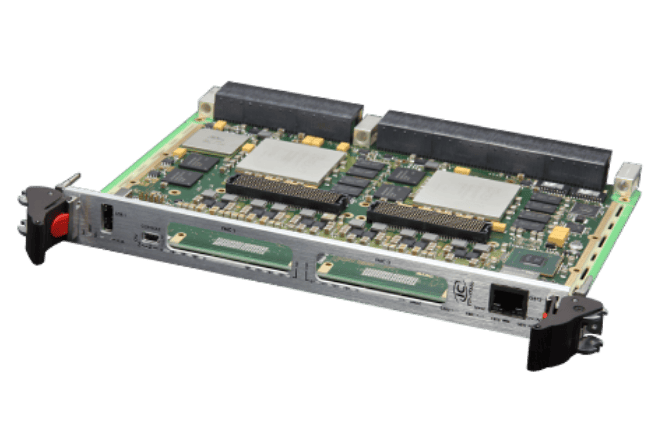

IC-FEP-VPX6e
