ComEth4690e – 3U VPX SOSA®-aligned 100 Gigabit Ethernet Switch

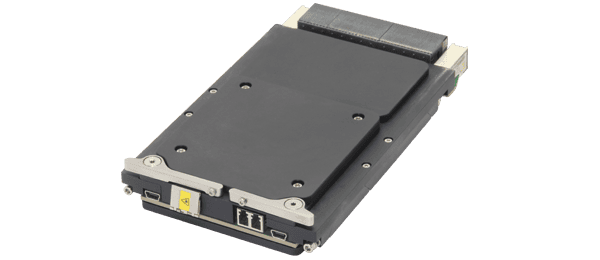

ComEth4690e 3U VPX Ethernet switch

The ComEth4690e is a 3U VPX 100 Gigabit Ethernet Level 2/3 switch aligned with the SOSA® Technical Standard, compliant with the SLT3-SWH-6F1U7U-14.4.14 profile.  It  features  two  separate  on-board  Ethernet  switch  matrices,  each  of them is managed by its own ARM processor, thus completely isolating the Control plane from the Data plane of the 3U VPX system to provide the highest security level ever. The ComEth4690e offers 31 SerDes (DP 24 + CP 7) routed to the rear VPX connectors and 9 Serdes (DP 8 + CP 1) to the front panel. It takes advantage of the modularity of the Ethernet matrices to configure each Serdes (or group of Serdes) individually in 1G-KX, 10G-KR, 25G-KR, 40G-KR4 or 100G-KR4 Ethernet mode on the rear and 1/10/25GBASE-SR or 40/100GBASE-SR4 fiber optic ports (MPO connector) on the front. This high-performance switch can be configured remotely via the Switchware web interface, SNMP or CLI. The ComEth4690e is available in a conduction-cooled version.

Main Features

    ✔ Switching for 2 independent domains
    ✔ up to 40 ports
    ✔ 31 SerDes (DP 24 + CP 7) rear
    ✔ 9 SerDes (DP 8 + CP 1) front
    ✔ 1GBASE-KX, 10/25GBASE-KR, 40/100GBASE-KR4 (rear)
    ✔ 1/10/25GBASE-SR, 40/100GBASE-SR4 (front)
    ✔ VITA 65.0 SLT3-SWH-6F1U7U-14.4.14
    ✔ Aligned with the SOSA® Technical Standard
