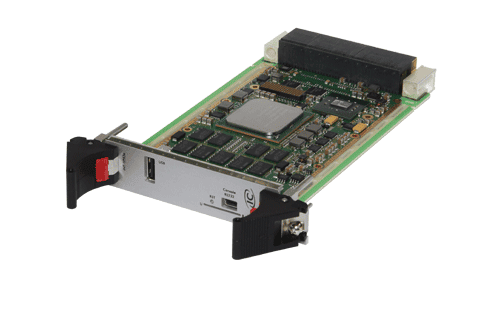

IC-INT-VPX3e

3U VPX Intel Xeon D Single Board Computer

#ffa07a

Overview

The IC-INT-VPX3e is a powerful OpenVPX 3U SBC based on the Broadwell-DE processor – 14nm High Performance Chip of Intel’s Low Power Spectrum.

Combined with IC’s ComEth4582a 10 Gigabit Ethernet router or hybrid ComEth4410a switch (PCIe & Ethernet) and other IC’s Processor/FPGAs boards with IC’s software / Firmware libraries, the IC-INT-VPX3e is the key building block of the next High Performance Embedded Computing systems (HPEC).

The IC-INT-VPX3e like any IC Intel® board, is delivered with IC’s own UEFI. This capability to master Boot firmware allows Interface Concept to implement specific functions or services for secured and accurate power-up sequences.

Features

Processing Unit
• 1 * Intel® Xeon® D-1500 processor
• 2 * banks of DDR4 with ECC (up to 8GB/
Bank)
• Boot flash memory
• External independent RTC with supercap
backup
• Thermal/voltage monitoring sensors
• 1 * SATA NAND SSD (up to 16GB)

Communication subsystem
• 4 * PCIe x4 ports (three on P1A/P1B/P1C
one on P2A)
• 2 * 10GBASE-KR Ethernet ports
• 1 * 1000BASE-T Ethernet port
• 1 * RS232 console port (front or rear)
• 1 * rear USB 3.0 ports
• 3 * rear USB 2.0 ports (1 * front exclusive
with XMC / 2 * rear)
• 4 * rear SATA interfaces
• 6 * GPIOs

Extension
• AMD Kintex™ 7 FPGA
• 1 RS232/RS422/RS485 serial port (rear)
• GPIOs (X8d – on P2)
• 1 * XMC slot PCIe x8 -or 2 * x4 (option,
with restriction – consult us)

Miscellaneous
• Status LEDs
• PIC µ-controller for System Management
(VITA 46.11)

Accessories
Engineering kit for debug : JTAG/COP, console…
3U Rear Transition Module

The IC-INT-VPX3e is a 3U VPX board compliant with VITA 46.0 standard.

It is available in air-cooled and conduction cooled versions (-40°C / up to +85°C, according to TDP configuration).

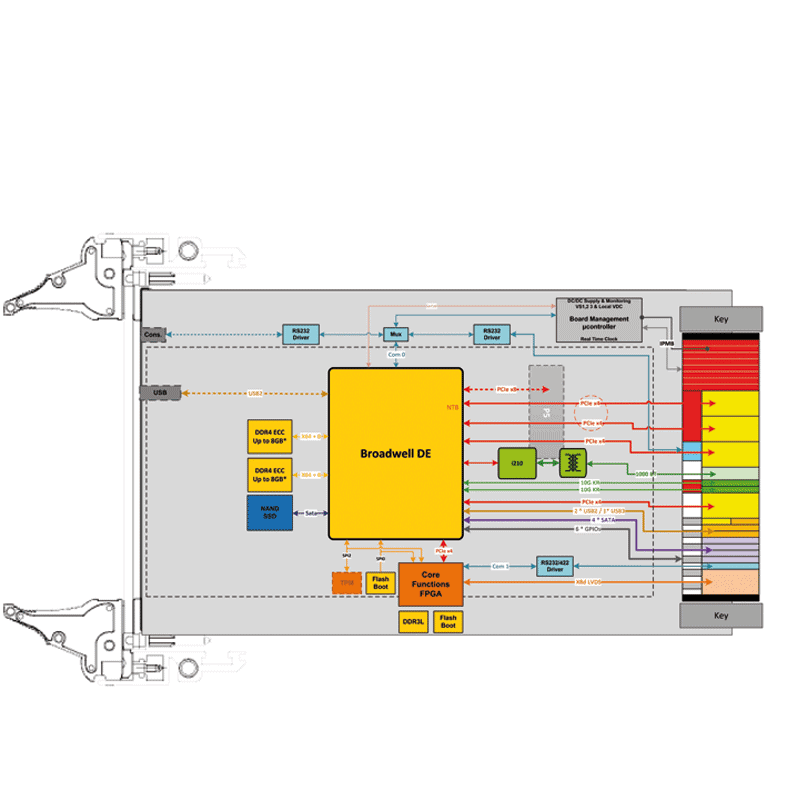

Diagram

IC-INT-VPX3e - diagram

Grades

StandardExtendedRuggedConduction-cooled 71°CConduction-cooled 85°C
CoatingOptionalYesYesYesYes
Operat. Temp.0 to 55°C-20 to 65°C-40°C to 71°C (*)-40°C to 71°C at the thermal interface (*)-40°C to 85°C at the thermal interface (*)
Rec. airflow1 .. 2 m/s2 .. 3 m/s2 .. 5 m/s--
Oper. HR% no cond.5 to 90%5 to 95%5 to 95%5 to 95%5 to 95%
Storage Temp.-45°C to 85°C-45°C to 85°C-45°C to 100°C-45°C to 100°C-45°C to 100°C
Sinusoidal Vibr2G [20..2000]Hz2G [20..2000]Hz5G [20..2000]Hz5G [20..2000]Hz5G [20..2000]Hz
Random Vibr0.002g2 /Hz [10..2000]Hz0.002g2 /Hz [10..2000]Hz0.05g2 /Hz [10..2000]Hz0.1g2 /Hz [10..2000]Hz0.1g2 /Hz [10..2000]Hz
Shock 1/2 Sin. 11ms20G20G40G40G40G

Related products

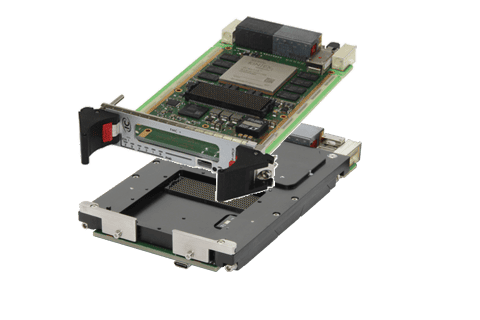

3U VPX VITA 66.5 FPGA board with FMC+ Site
#d54444
  • 3U VPX – VITA 66.5
  • 1 * AMD Kintex™ UltraScale™ FPGA
  • 2 * DDR4 banks (up to 4GB each)
  • 1 * AMD Artix™7 control node
  • 1 * FMC+ site (VITA 57.4)

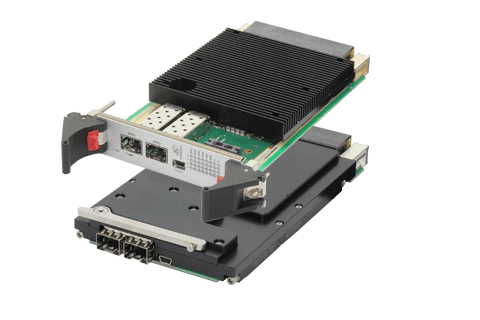

3U VPX 10/40 Gigabit Ethernet Switch and IP router
