IC-ARM-VPX3a

3U VPX LX2160A Arm®-based Single Board Computer

#ffa07a

Overview

The IC-ARM-VPX3a is a low-power 3U VPX Single Board Computer ideal for command and control functionality of sensor systems, as well as applications needing high multi-threaded performance (target tracking or C4ISR).

Features

NXP Layerscape® LX2160A
• up to 2.2 GHz
• Up to 32 GB DDR4-ECC
• 128MB Quad SPI NOR Flash
• 512 KB xSRAM
• eMMC
• All protected by NVMRO

Board Management Controller
• VITA 46.11-2015 compliant with full Tier-2
support and HOST 3.0 extensions
• PCI µ-controller for System Management
(per VITA 46.11)
• RTC with supercap backup
• Elapse Time Counter
• DC and Thermal monitoring

M.2 slot socket
• Front and back L2 maintenance covers

Accessories
• Engineering kit for debug: JTAG/COP, console
• 3U Rear Transition Module

Additional Ethernet ports can be supported on P1C signals that belong to the SOSA™ profile XMC map.
Please contact IC for further details.

VPX connector interfaces
• Data Plane (P1)
• 4 * 10GBASE-KR or
• 4 * 25GBASE-KR or
• 1 * 40GBASE-KR4 or
• 1 * 100GBASE-KR4
• Expansion plane (P1)
• 1 * PCIe Gen2/3 x4 port
• Control Plane (P1 & P2)
• 2 * 10GBASE-KR
• 1 * 1GBASE-T port
• Storage (P2)
• 1 * SATA3
• Serial ports (P1 & P2)
• 1 * RS232 UART (P1)
• maintenance port
• support for both LVCMOS and RS-232
voltage levels
• 1 * RS232 / RS422 UART (P2)
• USB (P2)
• 1 * USB2.0 / USB 3.1
• 1 * USB2.0
• Dedicated power supply pins on P1 and P2

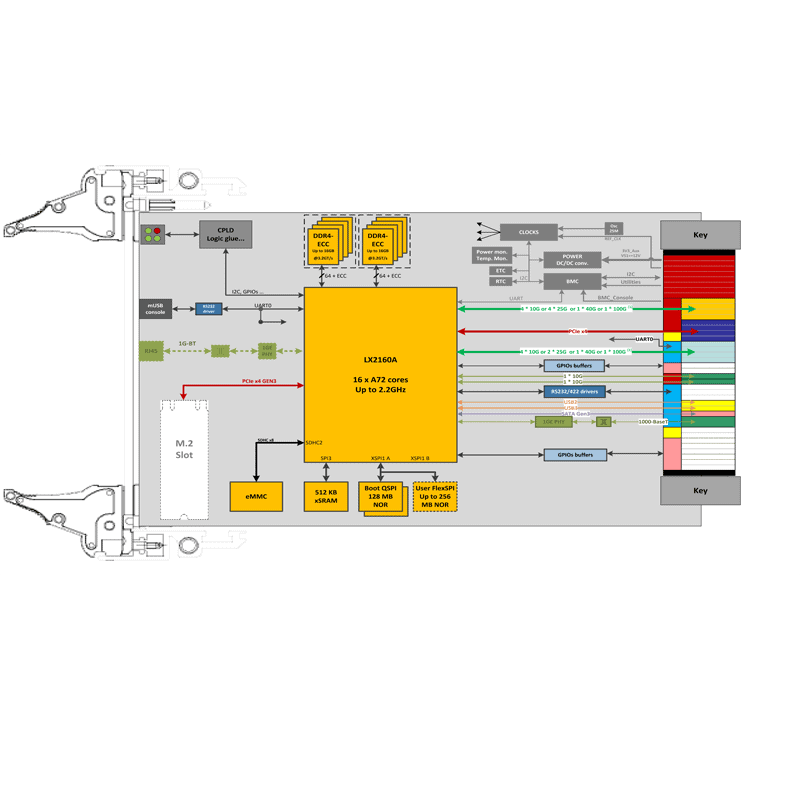

Diagram

IC-ARM-VPX3a - diagram

Grades

StandardExtendedRuggedConduction-cooled 71°CConduction-cooled 71°C
CoatingOptionalYesYesYesYes
Operat. Temp.0 to 55°C-20 to 65°C-40°C to 71°C (*)-40°C to 71°C at the thermal interface (*)-40°C to 85°C at the thermal interface (*)
Rec. airflow1 .. 2 m/s2 .. 3 m/s2 .. 5 m/s--
Oper. HR% no cond.5 to 90%5 to 95%5 to 95%5 to 95%5 to 95%
Storage Temp.-45°C to 85°C-45°C to 85°C-45°C to 100°C-45°C to 100°C-45°C to 100°C
Sinusoidal Vibr2G [20..2000]Hz2G [20..2000]Hz5G [20..2000]Hz5G [20..2000]Hz5G [20..2000]Hz
Random Vibr0.002g2 /Hz [10..2000]Hz0.002g2 /Hz [10..2000]Hz0.05g2 /Hz [10..2000]Hz0.1g2 /Hz [10..2000]Hz0.1g2 /Hz [10..2000]Hz
Shock 1/2 Sin. 11ms20G20G40G40G40G
