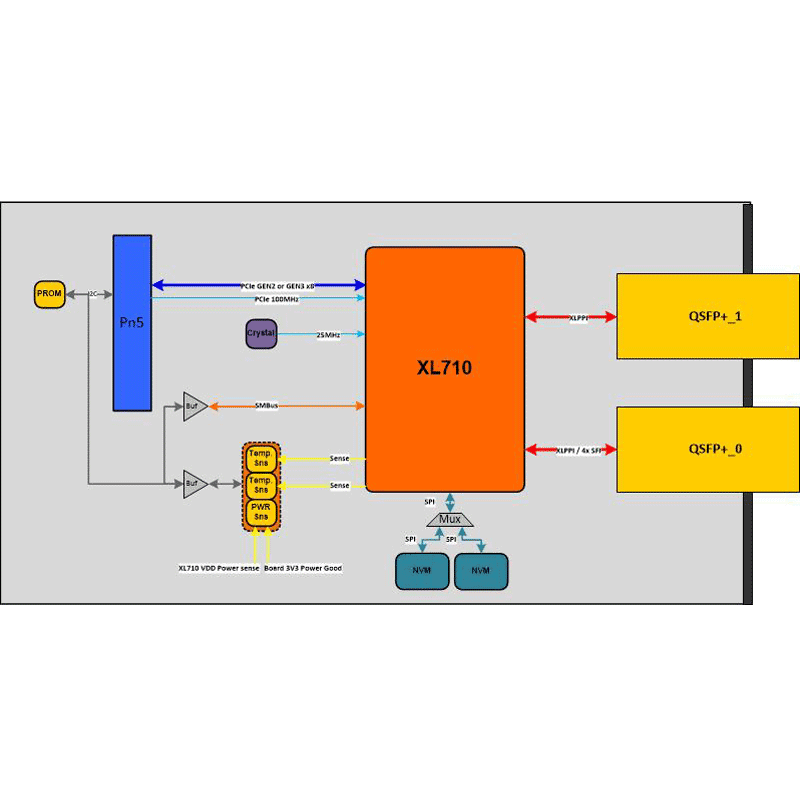

The IC-XGE-XMCa is a XMC board offering up to two 40 Gigabit Ethernet (GbE) or quad-port 10 GbE ports.
Pn5 :
►PCIe x8, Gen2 or Gen3 (2)
►Power Supplies: VPWR and 3.3V_aux (mandatory)
►Two-wire serial management bus to address :
►a serial EEPROM (Field Replaceable Unit -FRU- records),
►an on-board Temperature and Power Supply monitor, the XL710V controller.
Front :
►two QSFP+ cages
The IC-XGE-XMCa is available in air-cooled grades.
Please contact us for details.
(2) PCIe Gen3 support implies a specific part number with VITA 61 (XMC 2.0) connectors and to be installed on XMC 2.0 carrier (consult us).
| Standard | Extended | Rugged | Conduction-cooled 71°C | Conduction-cooled 85°C | |
|---|---|---|---|---|---|
| Coating | Optional | Yes | Yes | Yes | Yes |
| Operat. Temp. | 0 to 55°C | -20 to 65°C | -40°C to 71°C (*) | -40°C to 71°C at the thermal interface (*) | -40°C to 85°C at the thermal interface (*) |
| Rec. airflow | 1 .. 2 m/s | 2 .. 3 m/s | 2 .. 5 m/s | - | - |
| Oper. HR% no cond. | 5 to 90% | 5 to 95% | 5 to 95% | 5 to 95% | 5 to 95% |
| Storage Temp. | -45°C to 85°C | -45°C to 85°C | -45°C to 100°C | -45°C to 100°C | -45°C to 100°C |
| Sinusoidal Vibr | 2G [20..2000]Hz | 2G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz | 5G [20..2000]Hz |
| Random Vibr | 0.002g2 /Hz [10..2000]Hz | 0.002g2 /Hz [10..2000]Hz | 0.05g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz | 0.1g2 /Hz [10..2000]Hz |
| Shock 1/2 Sin. 11ms | 20G | 20G | 40G | 40G | 40G |
