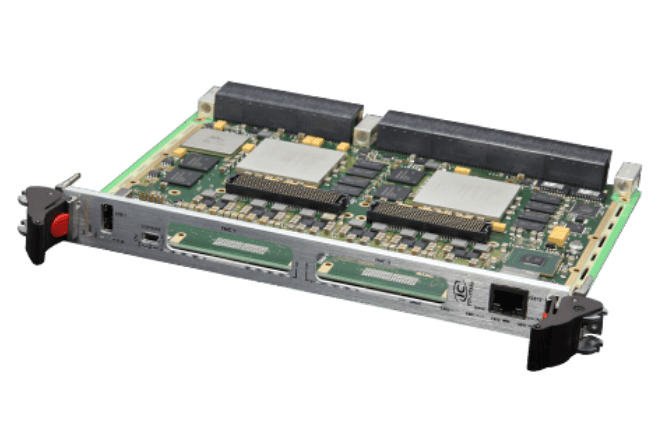

IC-XGE-XMCa

10G/40G Ethernet XMC card

XMC
10G/40G Ethernet
2*QSFP+ cages
Up to 2*40GbE/4*10GbE
PCIe Gen2/3 interface

The IC-XGE-XMCa is a XMC board offering up to two 40 Gigabit Ethernet (GbE) or quad-port 10 GbE ports.

Pn5 :
PCIe x8, Gen2 or Gen3 (2)
Power Supplies:
VPWR and 3.3V_aux (mandatory)
Two-wire serial management bus to address :
a serial EEPROM (Field Replaceable Unit -FRU- records),
an on-board Temperature and Power Supply monitor,
the XL710V controller.

Front :
Two QSFP+ cages

The IC-XGE-XMCa is available in air cooled grades. Please contact us for details.

(2) PCIe Gen3 support implies a specific part number with VITA 61 (XMC 2.0) connectors and to be installed on XMC 2.0 carrier (consult us).

IC-XGE-XMCa - 10G/40G Ethernet XMC diagram

✖

Criterion	Standard	Extended	Rugged	Conduction-cooled 71°C	Conduction-cooled 85°C
Coating	Optional	Yes	Yes	Yes	Yes
Operat. Temp.	0 to 55°C	-20 to 65°C	-40°C to 71°C or 85°C (*)	-40°C to 71°C at the thermal interface (*)	-40°C to 85°C at the thermal interface (*)
Rec. airflow	1 .. 2 m/s	2 .. 3 m/s	2 .. 5 m/s	-	-
Oper. HR% no cond.	5 to 90%	5 to 95%	5 to 95%	5 to 95%	5 to 95%
Storage Temp.	-45°C to 85°C	-45°C to 85°C	-45°C to 100°C	-45°C to 100°C	-45°C to 100°C
Sinusoidal Vibr	2G [20..2000]Hz	2G [20..2000]Hz	5G [20..2000]Hz	5G [20..2000]Hz	5G [20..2000]Hz
Random Vibr	0.002g2 /Hz [10..2000]Hz	0.002g2 /Hz [10..2000]Hz	0.05g2 /Hz [10..2000]Hz	0.1g2 /Hz [10..2000]Hz	0.1g2 /Hz [10..2000]Hz
Shock 1/2 Sin. 11ms	20G	20G	40G	40G	40G

(*) Temperature grades are subject to availability according to IC products. Please consult us.
