IC-FIB-VPX6a

16 fiber T+R Interfaces on Kintex®-7 6U VPX processing unit

  • 6U VPX
  • 1* Xilinx Kintex-7 FPGA
  • SPI mirror flash
  • 2*GTX ports x4 from to P1
  • 16 differential pairs to P3
  • 32 optical interfaces

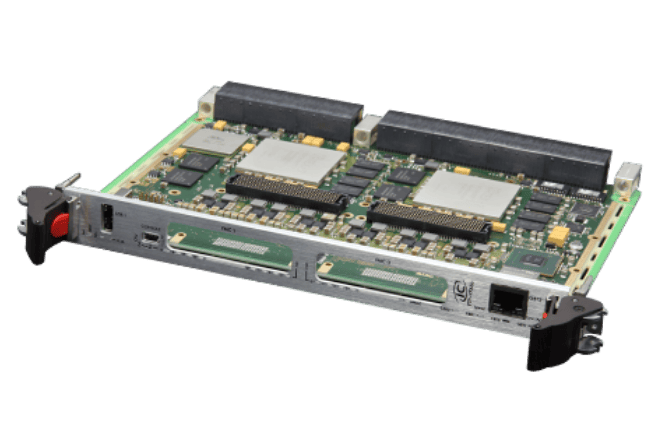

IC-FIB-VPX6a photo - 16 fiber T+R Interfaces on Kintex-7 processing unit

The IC-FIB-VPX6a is an Open VPX 6U board, designed to provide a high number of front panel optical fiber inputs and outputs.

The board also provides various backplane connections, supporting several electrical standards.

These interfaces are interconnected using a dedicated FPGA. The board takes advantages of the Kintex 7 FPGA features to enable high flexibility interconnection and to allow low level processing design.

DATASHEET Contact us

Processing Units
one Xilinx Kintex-7 XC7KC7K70T (1FBG67), offering:

1*SPI mirror flash memory
2*GTX ports x4 from to P1
16 differential pairs to P3

PICµ-controller for System Management (per VITA 46.11)

Front panel interfaces
16 optical interfaces (AFBR-1624Z transmitters) (*)
16 optical interfaces (AFBR-2529Z receivers) (*)

1 * console port
status leds

The IC-FIB-VPX6a is a VPX 6U / 4HP 1” board compliant with 6U module definitions of the VITA 46.0 standard. It is available in air-cooled grades.

IC-FIB-VPX6a - 16 fiber T+R Interfaces on Kintex®-7 processing unit diagram
✖ IC-FIB-VPX6a - 16 fiber T+R Interfaces on Kintex®-7 processing unit diagram
Criterion Standard Extended Rugged Conduction-cooled 71°C Conduction-cooled 85°C
Coating Optional Yes Yes Yes Yes
Operat. Temp. 0 to 55°C -20 to 65°C -40°C to 71°C or 85°C (*) -40°C to 71°C
at the thermal interface (*)		 -40°C to 85°C
at the thermal interface (*)
Rec. airflow 1 .. 2 m/s 2 .. 3 m/s 2 .. 5 m/s - -
Oper. HR% no cond. 5 to 90% 5 to 95% 5 to 95% 5 to 95% 5 to 95%
Storage Temp. -45°C to 85°C -45°C to 85°C -45°C to 100°C -45°C to 100°C -45°C to 100°C
Sinusoidal Vibr 2G [20..2000]Hz 2G [20..2000]Hz 5G [20..2000]Hz 5G [20..2000]Hz 5G [20..2000]Hz
Random Vibr 0.002g2 /Hz
[10..2000]Hz		 0.002g2 /Hz
[10..2000]Hz		 0.05g2 /Hz
[10..2000]Hz		 0.1g2 /Hz
[10..2000]Hz		 0.1g2 /Hz
[10..2000]Hz
Shock 1/2 Sin. 11ms 20G 20G 40G 40G 40G
(*) Temperature grades are subject to availability according to IC products. Please consult us.
