IC-FEP-VPX3h

3U VPX VITA 66.5 FPGA board with FMC+ site

#d54444

Overview

By introducing AMD Versal™ technology in the Front-End Processing (FEP) product line, Interface Concept proposes with the IC-FEP-VPX3h 3U VPX board based on a AMD Versal™ FPGA, a combination of adaptable processing and acceleration engines with programmable logic and configurable connectivity. These high-performance capabilities enable customized and heterogeneous hardware solutions for a wide array of applications. Such solutions also provides a higher performance/watt ratio over conventional FPGAs, CPUs and GPUs.

Features

Processing Unit

  • AMD Versal™ AI Core, AI Edge or Prime
  • Two banks of DDR4: 64-bit wide, up to 8GB each
  • 3 * SPI flash (bitstreams storage)
  • 1 * 256 MBytes of FlexSPI flash (User Data storage)
  • 1 * eMMC module

FMC+ VITA 57.4 interfaces

  • 6 * GTH x4 links
  • up to 80 differential pairs (*)
  • 6 reference clocks
  • (*) depending on FPGA models

BMC

  • VITA 46.11-2015 hardware compliant
  • RTC with supercap backup
  • DC and Thermal sensors

Accessories

  • Rear Transition Module

P0 connector

  • VS3, 3V3_AUX, VS1 (+12V for FMC)
  • REF_CLK
  • I2C bus, utilities (SYSRESET, NVMRO, GAx)

P1 connector

  • 1* Fat Pipe (Data plane) supporting MRMAC instantiation
  • 1 * Ultra Thin Pipe (Data plane)
  • 2 * Fat Pipe (Expansion plane) supporting CPM4 instantiation
  • 1 * Ultra Thin Pipe supporting 1G/10G/25G Ethernet (Control Plane)
  • 1 * RS232 port

P2A and P2B connectors (VITA 66.5)
can be populated with

  • VITA 66.5 Style C or
  • VITA 66.5 Style D connectors

Diagram

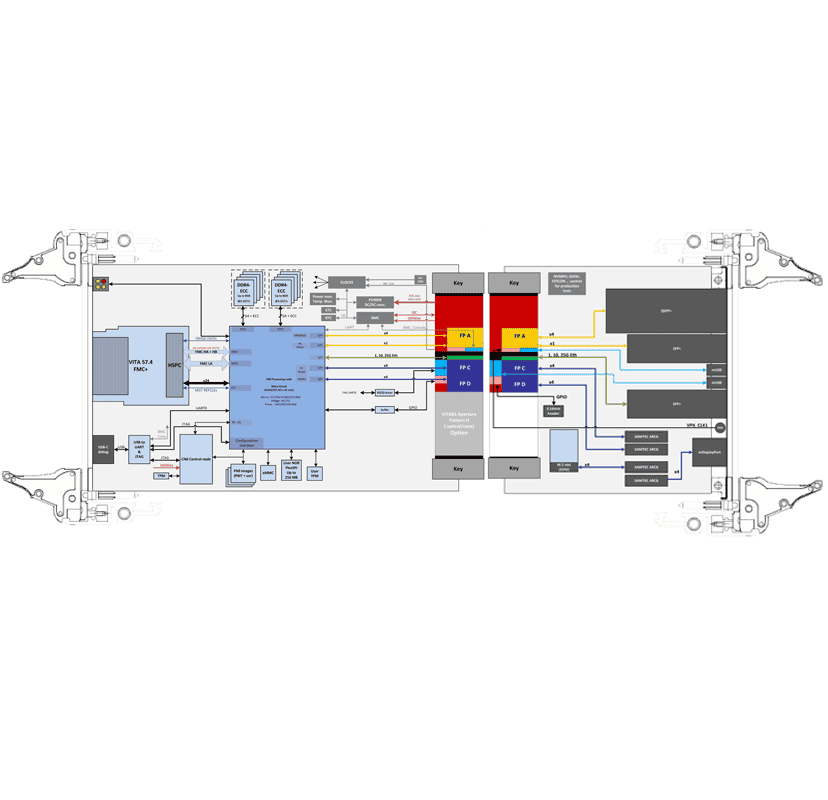

IC-FEP-VPX3h - diagram

Grades

StandardExtendedRuggedConduction-cooled 71°CConduction-cooled 85°C
CoatingOptionalYesYesYesYes
Operat. Temp.0 to 55°C-20 to 65°C-40°C to 71°C (*)-40°C to 71°C at the thermal interface (*)-40°C to 85°C at the thermal interface (*)
Rec. airflow1 .. 2 m/s2 .. 3 m/s2 .. 5 m/s--
Oper. HR% no cond.5 to 90%5 to 95%5 to 95%5 to 95%5 to 95%
Storage Temp.-45°C to 85°C-45°C to 85°C-45°C to 100°C-45°C to 100°C-45°C to 100°C
Sinusoidal Vibr2G [20..2000]Hz2G [20..2000]Hz5G [20..2000]Hz5G [20..2000]Hz5G [20..2000]Hz
Random Vibr0.002g2 /Hz [10..2000]Hz0.002g2 /Hz [10..2000]Hz0.05g2 /Hz [10..2000]Hz0.1g2 /Hz [10..2000]Hz0.1g2 /Hz [10..2000]Hz
Shock 1/2 Sin. 11ms20G20G40G40G40G
