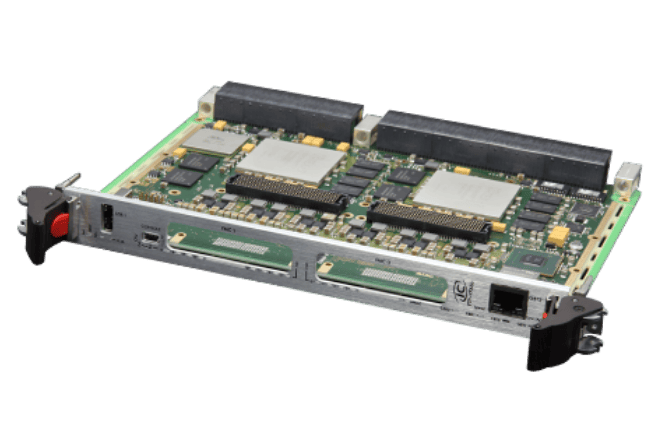

IC-FEP-VPX3f

3U VPX VITA 66.5 FPGA board with FMC+ Site

  • 3U VPX - VITA 66.5
  • 1 * AMD Kintex™ UltraScale™ FPGA
  • 2 * DDR4 banks (up to 4GB each)
  • 1 * AMD Artix™ 7 control node
  • 1 * FMC+ site (VITA 57.4)

IC-FEP-VPX3f - 3U VPX VITA 66.5 FPGA board with FMC+ site

Based on the latest AMD 20nm FPGA family, the IC-FEP-VPX3f enhances the front-end processing (FEP) product line of Interface Concept, as the first VITA 66.5 compliant FPGA board on the market today.

The AMD Kintex™ UltraScale™ FPGA provides a better performance/power consumption ratio compared to previous FPGAs, and makes the IC-FEP-VPX3f the perfect solution for applications requiring DSP intensive processing in a 3U VPX form factor.

The IC-FEP-VPX3f and other IC building blocks (Intel® and PowerPC SBCs, Ethernet Switches & Routers, FMC) running our Signal Processing Reference Design, are ideal platforms for users wishing to streamline development and concentrate their efforts on core strategic tasks.

DATASHEET Contact us

Processing Unit
• AMD Kintex™ UltraScale™ KU060, KU85 or KU115
• Two banks of DDR4: 64-bit wide, up to 4GB each
• 2 * 128 MBytes of QSPI flash  (bitstreams storage)
• 1 * 128 MBytes of QSPI flash (User Data storage)

VPX Interfaces
• Up to three 4-lane fabric ports on P1/P2

- 3 * GTH x4 (Fat Pipes P1A, P1B) (*)
- Optional 3 * GTH x4 to LightConex™ 12TRX (*)
(*) depending on FPGA models

• 28 GPIO’s from FPGA on P2, usable as
single-ended or differential pairs

FMC+ VITA 57.4 interfaces
• 6 GTH x4 links
• 80 differential pairs
• 6 reference clocks

Miscellaneous
• PIC μ-controller for System Management to VITA 46.11
• 4 LEDs

Accessories
• Engineering kit : JTAG ports for direct FPGA configuration
• Rear Transition Module

Interface features

P0 connector
• VS3, 3V3_AUX, VS1 (+12V for FMC)
• REF_CLK
• I2C bus, utilities (SYSRESET, NVMRO, GAx)

P0 + P1A connector
• Two 4-lane fabric ports
• PIC RS232

P1B + P2A connector
• One 4-lane fabric port
• 28 GPIO’s

P2B connector (VITA 66.5)
• LightConex™ LC 150G optical interconnect
• 12Tx + 12Rx @ 12.5 Gbps/lane
• 24 fibers Multimode interface

FMC connector
• 24 GTH (*)
• 80 or 160 differential pairs
• 6 clocks (LVDS Diff)

IC-FEP-VPX3f - 3U VPX VITA 66.5 FPGA board with FMC+ site diagram
✖ IC-FEP-VPX3f - 3U VPX VITA 66.5 FPGA board with FMC+ site diagram
Criterion Standard Extended Rugged Conduction-cooled 71°C Conduction-cooled 85°C
Coating Optional Yes Yes Yes Yes
Operat. Temp. 0 to 55°C -20 to 65°C -40°C to 71°C or 85°C (*) -40°C to 71°C
at the thermal interface (*)		 -40°C to 85°C
at the thermal interface (*)
Rec. airflow 1 .. 2 m/s 2 .. 3 m/s 2 .. 5 m/s - -
Oper. HR% no cond. 5 to 90% 5 to 95% 5 to 95% 5 to 95% 5 to 95%
Storage Temp. -45°C to 85°C -45°C to 85°C -45°C to 100°C -45°C to 100°C -45°C to 100°C
Sinusoidal Vibr 2G [20..2000]Hz 2G [20..2000]Hz 5G [20..2000]Hz 5G [20..2000]Hz 5G [20..2000]Hz
Random Vibr 0.002g2 /Hz
[10..2000]Hz		 0.002g2 /Hz
[10..2000]Hz		 0.05g2 /Hz
[10..2000]Hz		 0.1g2 /Hz
[10..2000]Hz		 0.1g2 /Hz
[10..2000]Hz
Shock 1/2 Sin. 11ms 20G 20G 40G 40G 40G
(*) Temperature grades are subject to availability according to IC products. Please consult us.
