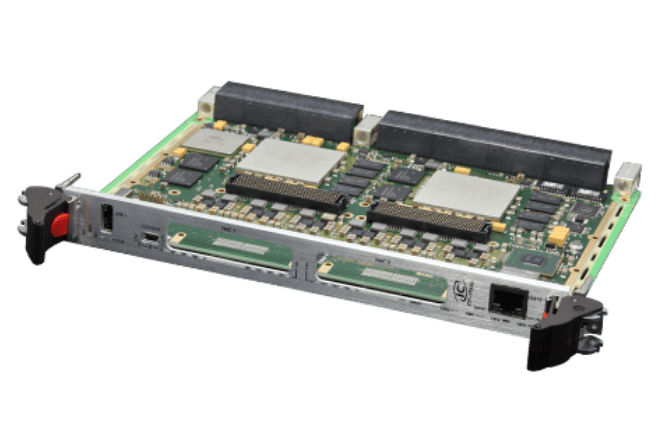

IC-FEP-VPX6a

6U VPX FPGA and QorIQ processing board

  • 6U VPX
  • 2 * AMD Virtex™ 6 FPGAs
  • 1 * NXP QorIQ™ processor P2020
  • 1 * AMD Spartan™ 6 LX-45T
  • 1 GB DDR3 with ECC
  • 1 * PCIe switch

IC-FEP-VPX6a - 6U VPX FPGA and QorIQ processing board

The IC-FEP-VPX6a is a VPX hybrid processing engine coupling the latest generations of FPGAs and processor, both of them delivering a very high level of performance per watt.

With its QorIQ™ processor for system management and a PCIe advanced switch for a versatile coupling between the processing nodes, the IC-FEP VPX6a board expands the flexibility of the two AMD Virtex™ 6 FPGAs and the VPX high bandwidth serial interfaces.

Two FMC mezzanine sites enlarge the adaptability of the board to connect ADC, DAC, general IOs, video, sFPDP or additionnal FPGA FMC modules.

With this combination of high performance CPU, dual FPGAs and FMC sites, the IC-FEP-VPX6a provides the ideal platform for radar, sonar, electronic warfare and other very high demanding digital signal processing applications.

DATASHEET Contact us

Processing Units
1 * QorIQ™ processor P2020, 1GHz, e500 v2 core with :
1 GB of DDR3 with ECC
256 or 512 MBytes of NOR Flash
optional Nand Solid-state Disk (eUSB module)
2 * AMD Virtex™ 6 : SX315T (-1 or -2), SX475T (-1 only),
LX240T or LX550T, both offering
two banks of DDR3 : 40-bit wide, 1.25 GBytes each
one SRAM DDRII+ : 18-bit wide / 9 MB
one SPI Flash (16 MBytes)
one Spartan™ 6 LX-45T (control Node)
one NOR flash (128 MBytes, for bistreams)

VPX Interfaces
4 * PCIe x4 port (from PCIe switch)
GTX ports (1 or 2 * GTX x8 from each FPGAs)
2 * GTP (from Ctrl node FPGA)
General purpose IOs
2 * 16LVDS (16 from each FPGAs)
2 * 16 differential pairs (16 from each FMC IOs connector)
GPIOs (from ctrl node FPGA)
2 * Ethernet ports (1000BT or 1000BX - from P2020)
1 * RS485/RS232 port
2 * USB 2.0 ports
PIC µ-controller for System Management (per VITA 46.11)

FMC interfaces (for each site, from FPGAs)
80 LVDS
4 reference clocks
1 * GTX x4 link

Front panel interfaces
1 * USB 2.0, 1 * Ethernet 1000BT and 1 * console port

Accessories
Engineering kit for debug : JTAG/COP and RS232 console.
Rear transition module

The IC-FEP-VPX6a is a VPX 6U / 4HP board compliant with 6U module definitions of the VITA 46.0 standard. It is available in air cooled (EFC1 & EFC3) and conduction cooled (ECC3 & ECC4) VITA 47 classes.

IC-FEP-VPX6a - 6U VPX FPGA and QorIQ processing board diagram
✖ IC-FEP-VPX6a - 6U VPX FPGA and QorIQ processing board diagram
Criterion Standard Extended Rugged Conduction-cooled 71°C Conduction-cooled 85°C
Coating Optional Yes Yes Yes Yes
Operat. Temp. 0 to 55°C -20 to 65°C -40°C to 71°C or 85°C (*) -40°C to 71°C
at the thermal interface (*)		 -40°C to 85°C
at the thermal interface (*)
Rec. airflow 1 .. 2 m/s 2 .. 3 m/s 2 .. 5 m/s - -
Oper. HR% no cond. 5 to 90% 5 to 95% 5 to 95% 5 to 95% 5 to 95%
Storage Temp. -45°C to 85°C -45°C to 85°C -45°C to 100°C -45°C to 100°C -45°C to 100°C
Sinusoidal Vibr 2G [20..2000]Hz 2G [20..2000]Hz 5G [20..2000]Hz 5G [20..2000]Hz 5G [20..2000]Hz
Random Vibr 0.002g2 /Hz
[10..2000]Hz		 0.002g2 /Hz
[10..2000]Hz		 0.05g2 /Hz
[10..2000]Hz		 0.1g2 /Hz
[10..2000]Hz		 0.1g2 /Hz
[10..2000]Hz
Shock 1/2 Sin. 11ms 20G 20G 40G 40G 40G
(*) Temperature grades are subject to availability according to IC products. Please consult us.
